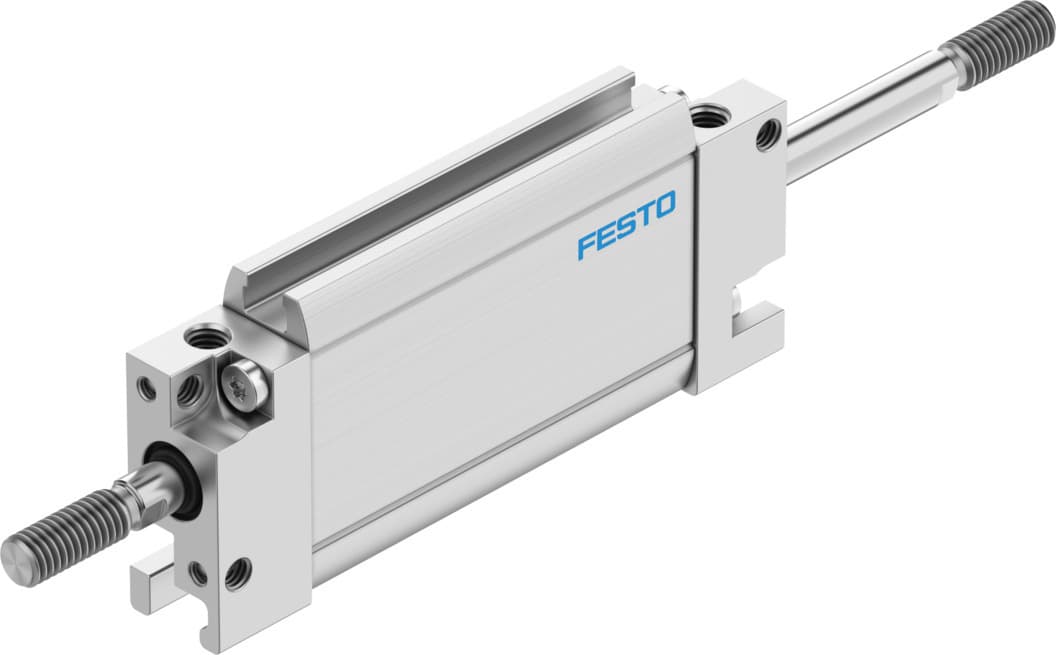

dzf-12- -a-p-a-s2
Product ID:4092
Updated: 2026/4/3
Key Features
- 1Ensure high precision and reliability for consistent industrial performance. 2、Fit into space-constrained environments with its compact design. 3、Reduce wear with elastic cushioning rings at both ends. 4、Monitor movement precisely via proximity switch position detection. 5、Achieve accurate rotation with +/-2.5° piston rod torsional backlash.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 12 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 2.5deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1.6bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.1Nm |
| Theoretical force at 6 bar, retracting | 51N | Theoretical force at 6 bar, advancing | 51N |
| Moving mass at 0?mm stroke | 12g | Additional moving mass per 10?mm stroke | 2g |
| Additional weight per 10?mm stroke | 9g | Basic weight with 0?mm stroke | 96g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 161221 |
Specifications may be subject to change without notice
