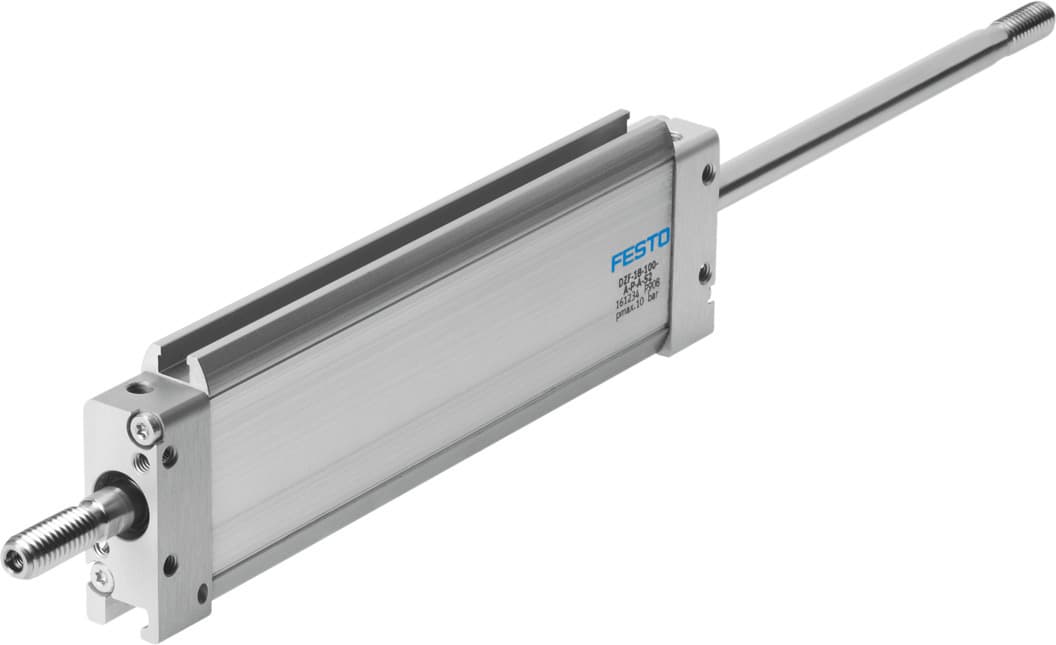

dzf-18- -a-p-a-s20
Product ID:4106
Updated: 2026/4/3
Key Features
- 1Ensure precise position sensing with a non-rotating design. 2、Reduce wear using elastic cushioning rings at both ends. 3、Handle versatile applications with an 18mm piston and 40mm stroke. 4、Enable efficient forward and return strokes via double-acting operation. 5、Guarantee reliable performance with ISO8573-1:2010 compressed air compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 18 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 1.2deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991218 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.2Nm |
| Theoretical force at 6 bar, retracting | 123N | Theoretical force at 6 bar, advancing | 123N |
| Moving mass at 0?mm stroke | 24g | Additional moving mass per 10?mm stroke | 4g |
| Additional weight per 10?mm stroke | 13g | Basic weight with 0?mm stroke | 107g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 161235 |
