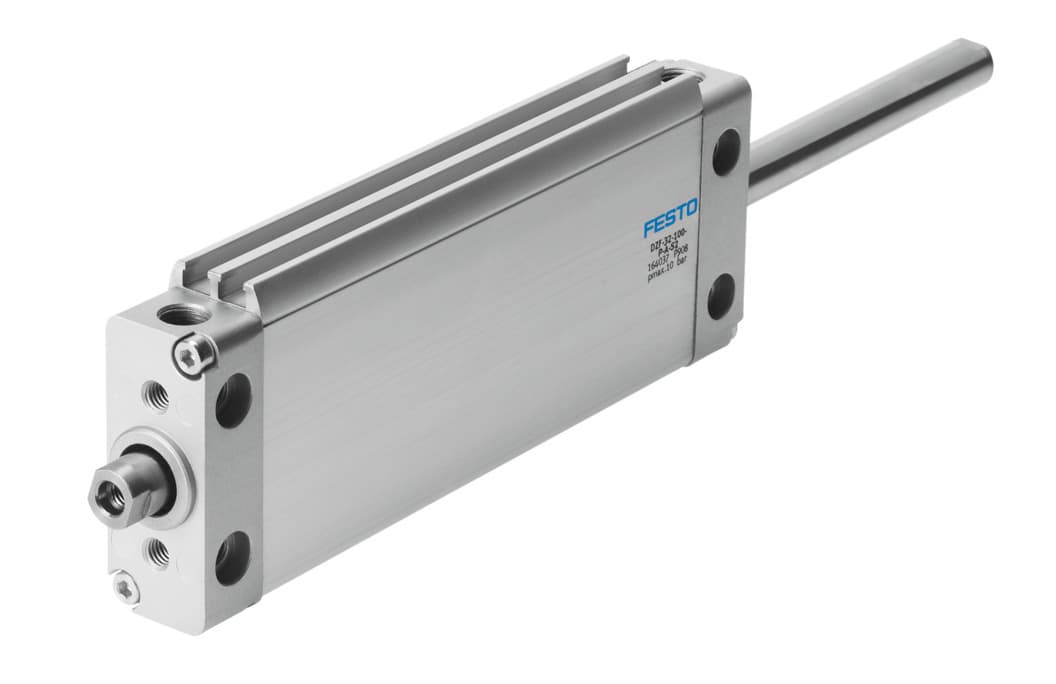

dzf-25- -p-a-s2
Product ID:4722
Updated: 2026/4/4
Key Features
- 1Achieve strokes from 1 to 200 mm for versatile application fit. 2、Utilize a robust 25 mm piston diameter for precise actuation force. 3、Reduce wear with elastic cushioning rings at both ends for smooth operation. 4、Enable double-acting operation for both extension and retraction cycles. 5、Ensure accurate position detection via an integrated proximity switch.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 25 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 1deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 0.5Nm |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 247N |
| Moving mass at 0?mm stroke | 40g | Additional moving mass per 10?mm stroke | 6g |
| Additional weight per 10?mm stroke | 18g | Basic weight with 0?mm stroke | 168g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 164025 |
