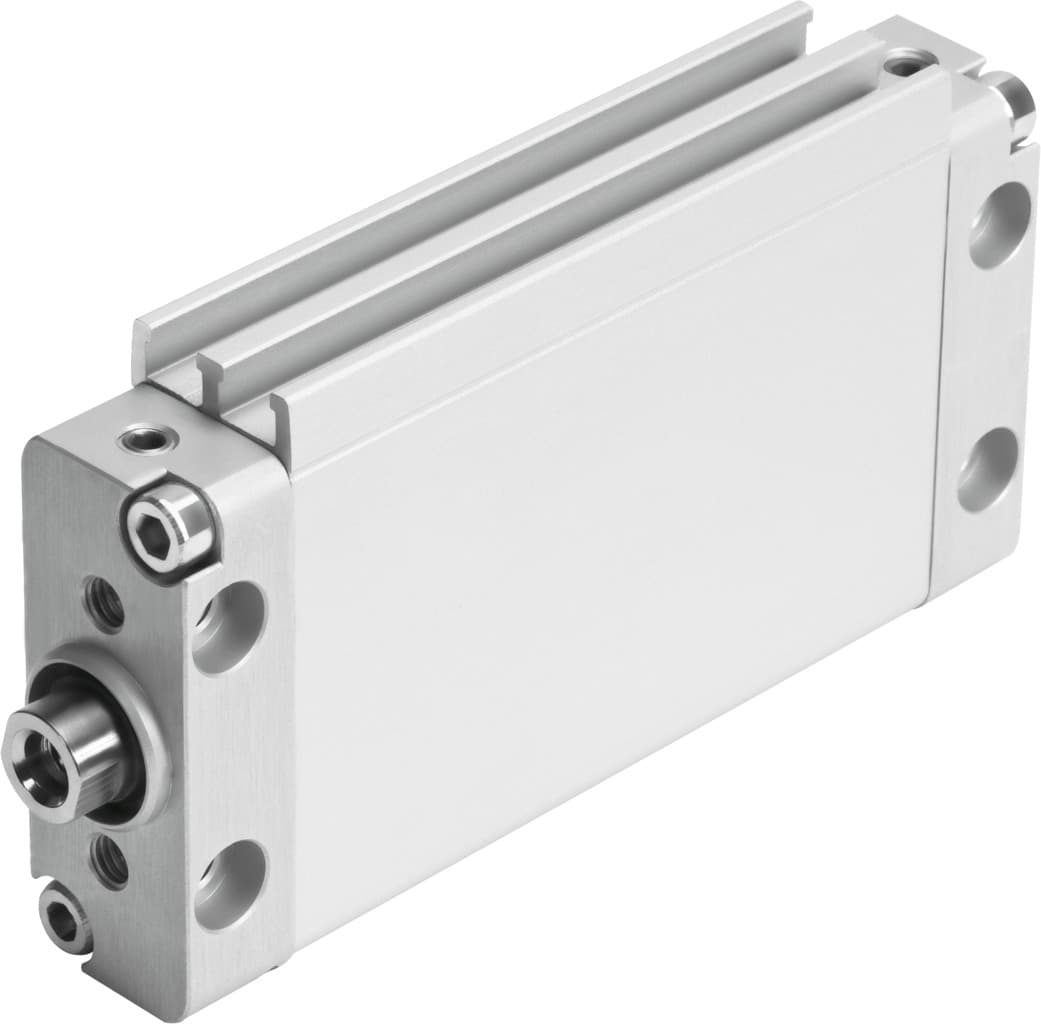

dzf-25- -p-a-s6
Product ID:4723
Updated: 2026/4/4
Key Features
- 1Utilize high-alloy stainless steel piston rods for exceptional durability and precision. 2、Reduce noise and vibration with adjustable elastic cushioning rings at both ends. 3、Enable double-acting operation for versatile advancing and retracting motions. 4、Withstand moderate corrosion stress with a CRC 2 resistance rating. 5、Monitor movement precisely via integrated proximity switch position detection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 25 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 1deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991217 | Variants | Heat-resistant seals max. 120°C |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | 0°C 120°C | Max. torque for protection against rotation | 0.5Nm |
| Theoretical force at 6 bar, retracting | 247N | Theoretical force at 6 bar, advancing | 295N |
| Moving mass at 0?mm stroke | 40g | Additional moving mass per 10?mm stroke | 6g |
| Additional weight per 10?mm stroke | 18g | Basic weight with 0?mm stroke | 168g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | M5 |
| Cover material | Wrought aluminum alloy | Seals material | FPM |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy stainless steel |
| Manufacturer ID | 164026 |
Specifications may be subject to change without notice
