dzf-40- -a-p-a-s2
Product ID:4146
Updated: 2026/4/3
Key Features

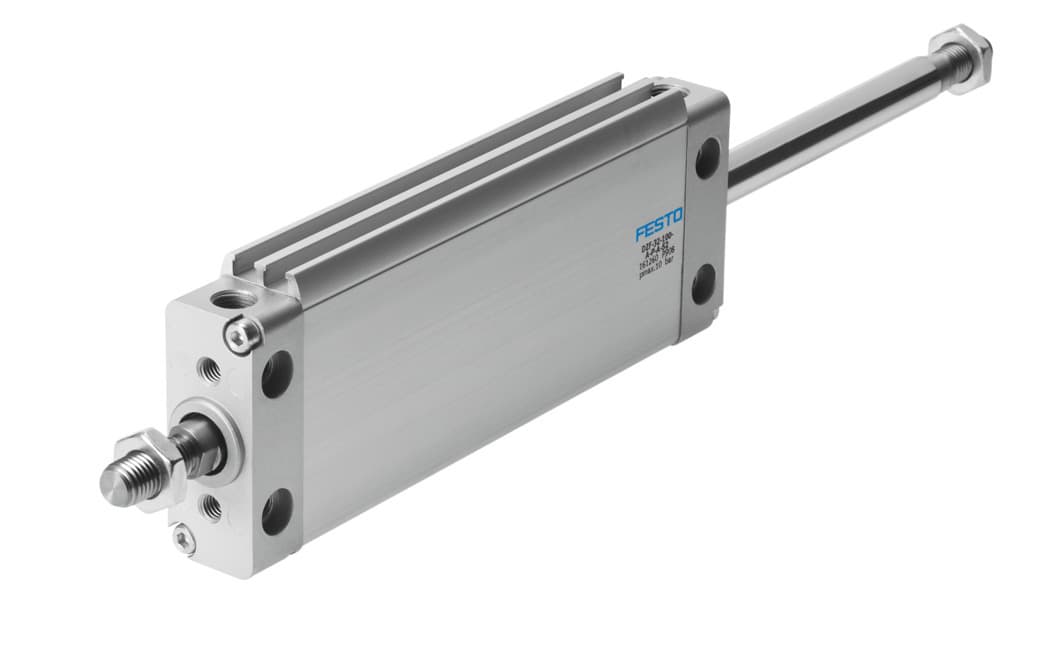

- 1Optimize space with the compact Festo DZF-40- -A-P-A-S2 flat cylinder. 2、Achieve precise control featuring a 40 mm piston diameter. 3、Ensure smooth operation using integrated elastic cushioning rings. 4、Minimize positioning errors with +/-0.6° torsional backlash. 5、Deploy reliably in demanding industrial environments for long-term performance.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 320mm | Piston diameter | 40 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 0.6deg | Cushioning | Elastic cushioning rings/pads at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991219 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -20°C 80°C | Max. torque for protection against rotation | 1Nm |
| Theoretical force at 6 bar, retracting | 633N | Theoretical force at 6 bar, advancing | 633N |
| Moving mass at 0?mm stroke | 120g | Additional moving mass per 10?mm stroke | 16g |
| Additional weight per 10?mm stroke | 40g | Basic weight with 0?mm stroke | 480g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | G1/8 |
| Cover material | Wrought aluminum alloy | Seals material | NBR TPE-U(PU) |
| Housing material | Aluminum Smooth anodized | Piston rod material | High-alloy steel |
| Manufacturer ID | 161275 |
