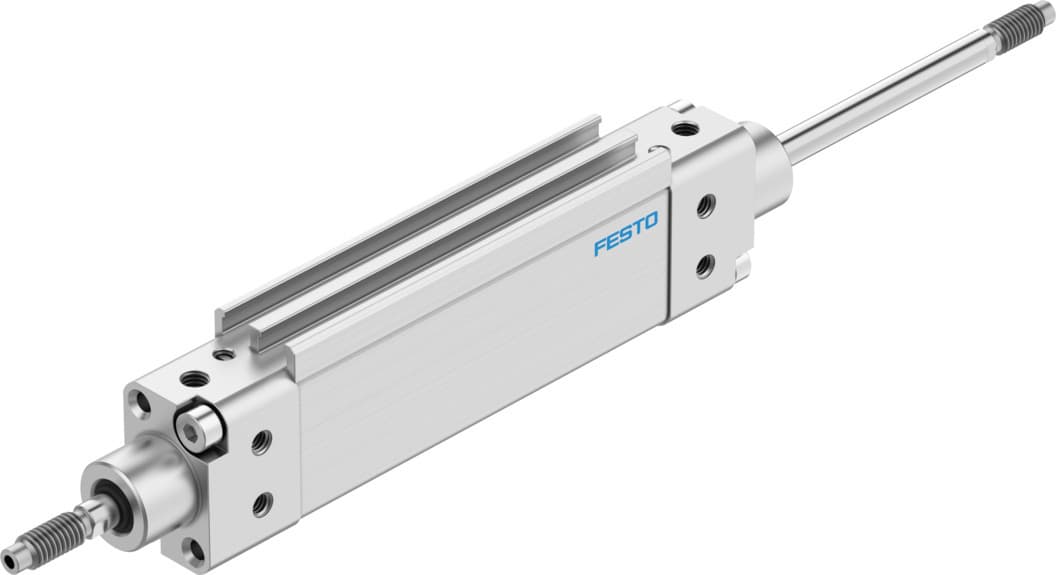

dzh-16- -ppv-a-s20
Product ID:3884
Updated: 2026/7/6
Key Features
- 1Optimize motion with adjustable pneumatic cushioning at both ends.
- 2Ensure durability using a high-alloy steel piston rod.
- 3Support diverse applications with a robust double-acting design.
- 4Simplify installation with optional mounting positions and accessories.
- 5Guarantee compliance by meeting ISO 8573-1:2010 and RoHS standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 200mm | Piston diameter | 16 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 3.1deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991236 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 14mm |
| Max. torque for protection against rotation | 0.5Nm | Theoretical force at 6 bar, retracting | 104N |
| Theoretical force at 6 bar, advancing | 104N | Additional weight per 10?mm stroke | 11g |
| Basic weight with 0?mm stroke | 140g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | M5 | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 158379 |
Specifications may be subject to change without notice
