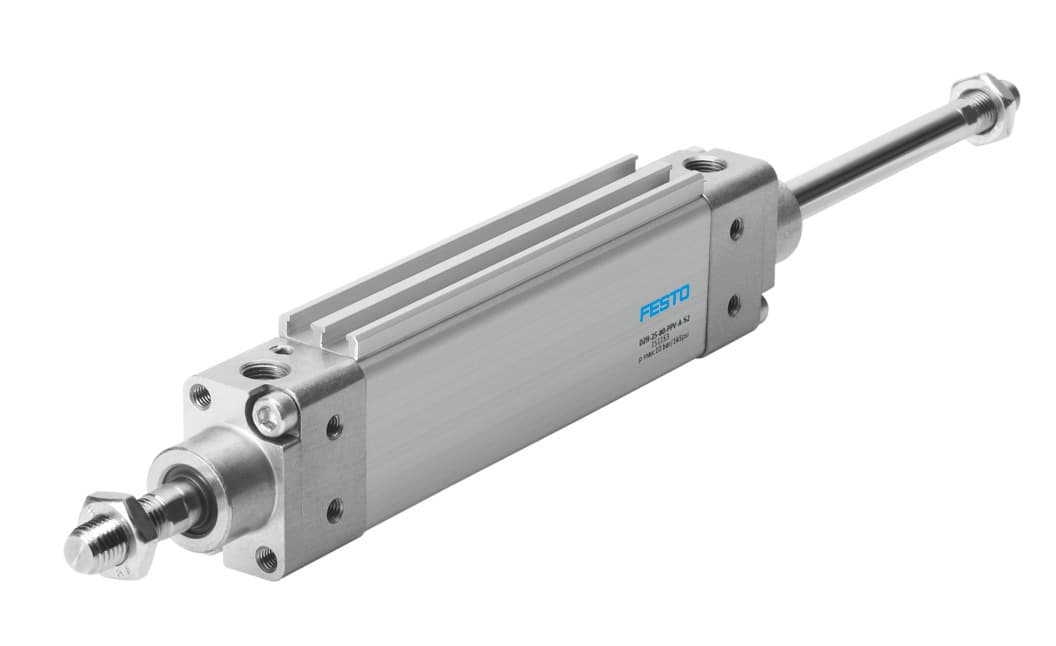

dzh-1"- -ppv-a-s2
Product ID:3876
Updated: 2026/4/3
Key Features
- 1Deliver high force with a robust 1-inch bore design. 2、Ensure smooth operation via adjustable air cushioning. 3、Enable precise control with an integrated magnetic sensor. 4、Provide moderate corrosion resistance for normal industrial environments. 5、Offer versatile mounting and heat-resistant seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1.016mm 508mm | Piston diameter | 1" |
| Max. angle of rotation of the piston rod +/- | 2.4deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991235 | Variants | Through piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
| Max. torque for protection against rotation | 0.8Nm | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 247N | Additional weight per 10?mm stroke | 21g |
| Basic weight with 0?mm stroke | 330g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | 1/8 NPT | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 157614 |
Specifications may be subject to change without notice
