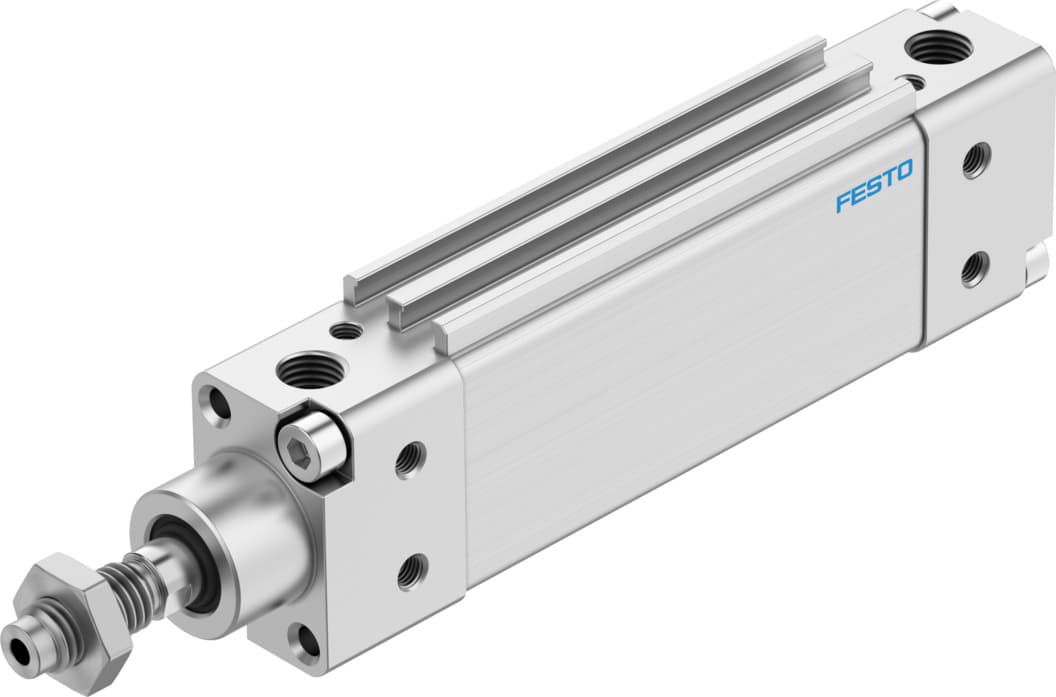

dzh-1"- -ppv-a-s6
Product ID:3879
Updated: 2026/4/3
Key Features
- 1Utilize high-alloy steel piston rods for superior durability and corrosion resistance. 2、Employ adjustable air cushioning at both ends to reduce noise and vibration. 3、Benefit from the oval piston design for reliable anti-rotation protection. 4、Integrate the magnetic piston for contactless position sensing and control. 5、Select from various mounting options for flexible application integration.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1.016mm 508mm | Piston diameter | 1" |
| Max. angle of rotation of the piston rod +/- | 2.4deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991237 | Variants | Heat-resistant seals max. 120°C |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 120°C | Cushioning length | 17mm |
| Max. torque for protection against rotation | 0.8Nm | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 295N | Additional moving mass per 10?mm stroke | 23g |
| Additional weight per 10?mm stroke | 21g | Basic weight with 0?mm stroke | 330g |
| Type of mounting | Optionally: With internal thread With accessories | Pneumatic connection | 1/8 NPT |
| Note on materials | RoHS-compliant | Cover material | Aluminum |
| Seals material | TPE-U(PU) | Housing material | Aluminum |
| Piston rod material | High-alloy steel | Manufacturer ID | 157617 |
Specifications may be subject to change without notice
