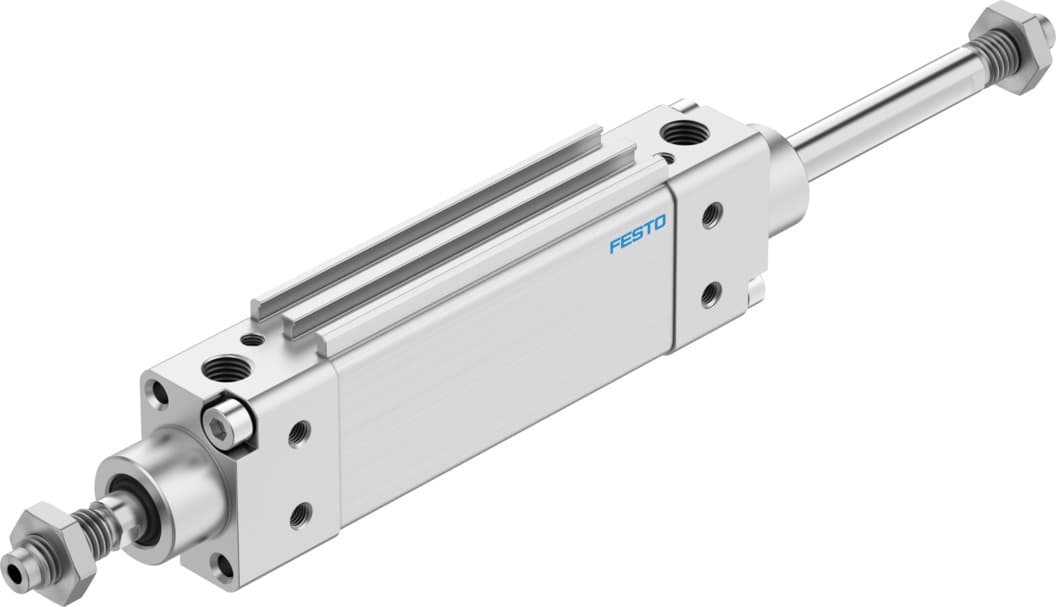

dzh-25- -ppv-a-s20
Product ID:3886
Updated: 2026/4/3
Key Features
- 1Adjust pneumatic cushioning at both ends for smooth motion control. 2、Construct with aluminum covers and high-alloy steel piston rods. 3、Operate across a wide 0.1 to 1 MPa pressure range. 4、Enable precise position detection with an integrated proximity switch. 5、Withstand moderate corrosion stress with CRC 2 rating.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1mm 500mm | Piston diameter | 25 mm Equivalent diameter |
| Max. angle of rotation of the piston rod +/- | 2.4deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991236 | Variants | Through, hollow piston rod |
| Protection against torsion/guide | Oval piston | Operating pressure | 1bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 80°C | Cushioning length | 17mm |
| Max. torque for protection against rotation | 0.8Nm | Theoretical force at 6 bar, retracting | 247N |
| Theoretical force at 6 bar, advancing | 247N | Additional weight per 10?mm stroke | 21g |
| Basic weight with 0?mm stroke | 330g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | G1/8 | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 158381 |
