dzh-2"- -ppv-a-s6
Product ID:4374
Updated: 2026/7/6
Key Features
- 1Enhance performance with a high-alloy steel piston rod.
- 2Reduce noise using adjustable pneumatic cushioning.
- 3Control motion via double-acting compressed air operation.
- 4Enable precision with magnetic piston for sensor detection.
- 5Mount flexibly per ISO 15552 for easy interchangeability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1.016mm 1016mm | Piston diameter | 2" |
| Max. angle of rotation of the piston rod +/- | 0.45deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |

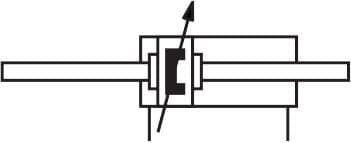

| Symbol | 00991237 | Variants | Heat-resistant seals max. 120°C |
| Protection against torsion/guide | Oval piston | Operating pressure | 0.5bar 10bar |
| Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] | Information on operating and pilot media | Operation with oil lubrication possible (required for further use) |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364-B2-L |
| Ambient temperature | -20°C 150°C | Cushioning length | 23mm |
| Max. torque for protection against rotation | 1.7Nm | Theoretical force at 6 bar, retracting | 989N |
| Theoretical force at 6 bar, advancing | 1178N | Additional weight per 10?mm stroke | 60g |
| Basic weight with 0?mm stroke | 1200g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | NPT1/4-18 | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 16263 |
Specifications may be subject to change without notice
