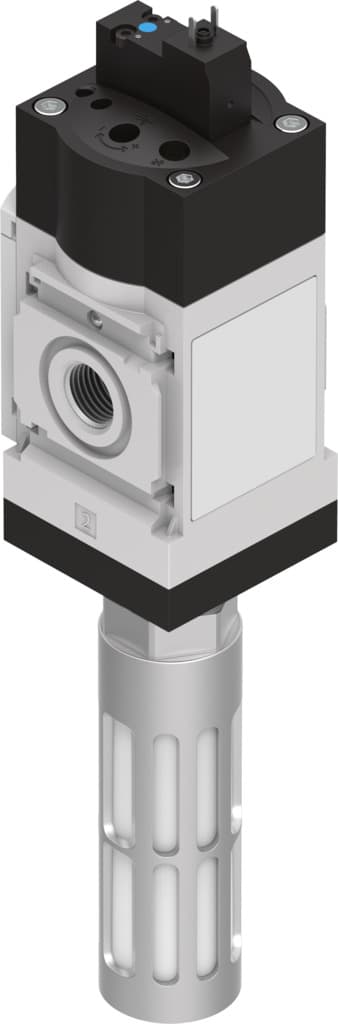

DZH-32-200-PPV-A
Product ID:510532
Updated: 2026/5/29
Key Features
- 1Operating mode: Double acting
- 2Piston diameter: 32 mm / equivalent diameter
- 3Theoretical force at 6 bar, forward stroke: 483 N
- 4Stroke: 200 mm
- 5Cushioning: Pneumatic cushioning, adjustable at both ends
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston rod material | High-alloy steel | Piston seal material | TPE-U(PU) |
| Housing material | Aluminium | Seal material | TPE-U(PU) |
| Cover material | Aluminium | Material note | RoHS compliant |
| Pneumatic connection | G1/8 | Mounting type | Via internal thread / With accessories |
| Basic weight at 0 mm stroke | 511 g | Additional weight per 10 m stroke | 25 g |
| Product weight | 1011 g | Moving mass | 303 g |
| Theoretical force at 6 bar, forward stroke | 483 N | Theoretical force at 6 bar, return stroke | 415 N |
| Max. torque for anti-rotation protection | 1 Nm | Cushioning length | 19 mm |
| Ambient temperature | -20 / 80 °C | Paint-wetting impairment substances (PWIS) conformity | VDMA24364-B2-L |
| Corrosion resistance class CRC | 2 - Moderate corrosion resistance | Operating and pilot medium notes | Can be operated with lubricated medium (subsequently must always be operated with lubricated medium) |
| Operating medium | Compressed air, conforming to ISO 8573-1:2010 [7:4:4] | Operating pressure | 0.6 / 10 bar |
| Torque/Guide protection | Elliptical piston | Variant | Single-ended piston rod |
| Symbol | 00991235 | Position detection | Via proximity switch |
| Design feature | Cylinder diameter / Piston rod | Operating mode | Double acting |
| Mounting position | Optional | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Piston rod torsion backlash (+/-) | 1.7 deg | Piston rod thread | M10x1.25 |
| Piston diameter | 32 mm / equivalent diameter | Stroke | 200 mm |
