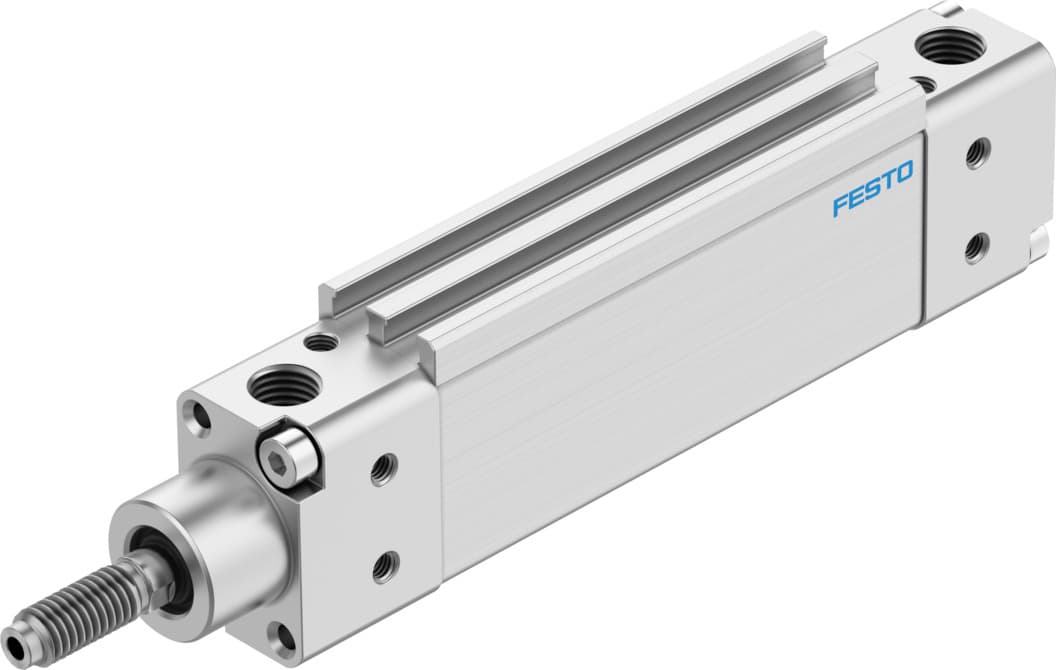

dzh-3/4"- -ppv-a
Product ID:3872
Updated: 2026/4/3
Key Features
- 1Provide adjustable cushioning at both ends for smooth operation. 2、Feature robust high-alloy steel piston rods for durability. 3、Operate as double-acting cylinders via dual air ports. 4、Enable contactless position detection with magnetic pistons. 5、Withstand temperatures from -20°C to +80°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1.016mm 330.2mm | Piston diameter | 3/4" |
| Max. angle of rotation of the piston rod +/- | 2.6deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991235 | Protection against torsion/guide | Oval piston |
| Operating pressure | 1bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Cushioning length | 17mm | Max. torque for protection against rotation | 0.6Nm |
| Theoretical force at 6 bar, retracting | 158N | Theoretical force at 6 bar, advancing | 188N |
| Additional moving mass per 10?mm stroke | 23g | Additional weight per 10?mm stroke | 15g |
| Basic weight with 0?mm stroke | 230g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | 1/8 NPT | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 157610 |
Specifications may be subject to change without notice
