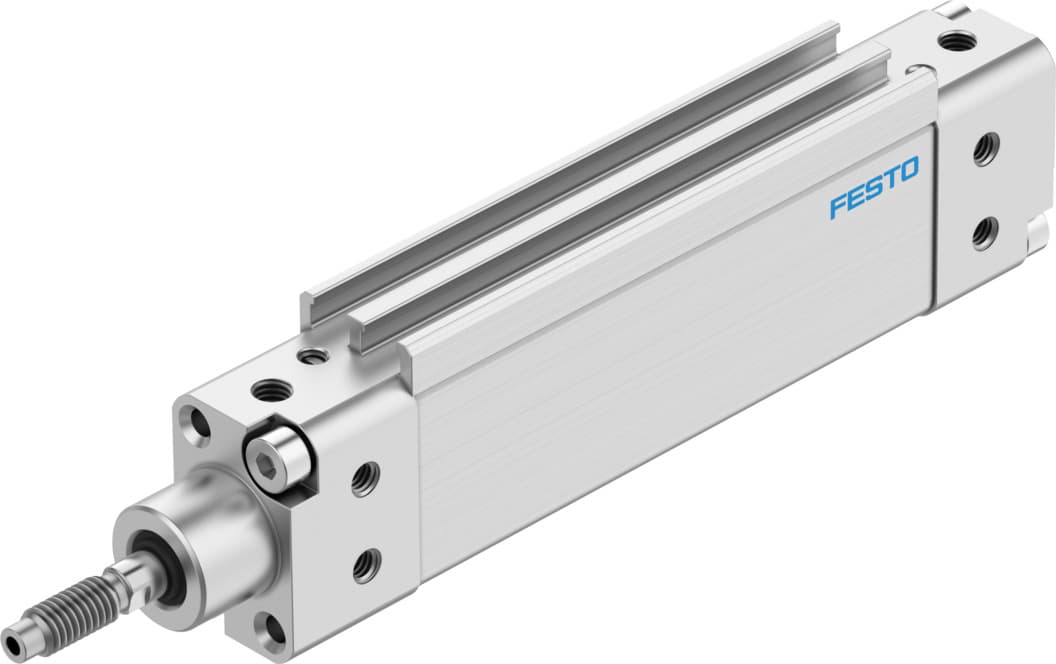

dzh-5/8"- -ppv-a
Product ID:3871
Updated: 2026/4/3
Key Features
- 1Feature adjustable cushioning at both ends for smooth, quiet operation. 2、Construct with high-alloy steel for durability and light weight. 3、Equip dual air ports for precise linear advancing and retracting. 4、Enable contactless position sensing via magnetic piston rods. 5、Support various mounting accessories for flexible installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Stroke | 1.016mm 203.2mm | Piston diameter | 5/8" |
| Max. angle of rotation of the piston rod +/- | 3.1deg | Cushioning | Pneumatic cushioning, adjustable at both ends |
| Mounting position | Any | Mode of operation | Double-acting |
| Structural design | Piston Piston rod | Position sensing | For proximity sensor |
| Symbol | 00991235 | Protection against torsion/guide | Oval piston |
| Operating pressure | 1bar 10bar | Operating medium | Compressed air as per ISO 8573-1:2010 [7:4:4] |
| Information on operating and pilot media | Operation with oil lubrication possible (required for further use) | Corrosion resistance class (CRC) | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L | Ambient temperature | -20°C 80°C |
| Cushioning length | 14mm | Max. torque for protection against rotation | 0.5Nm |
| Theoretical force at 6 bar, retracting | 104N | Theoretical force at 6 bar, advancing | 121N |
| Additional moving mass per 10?mm stroke | 177g | Additional weight per 10?mm stroke | 11g |
| Basic weight with 0?mm stroke | 140g | Type of mounting | Optionally: With internal thread With accessories |
| Pneumatic connection | 10-32 UNF-2B | Note on materials | RoHS-compliant |
| Cover material | Aluminum | Seals material | TPE-U(PU) |
| Housing material | Aluminum | Piston rod material | High-alloy steel |
| Manufacturer ID | 157609 |
Specifications may be subject to change without notice
