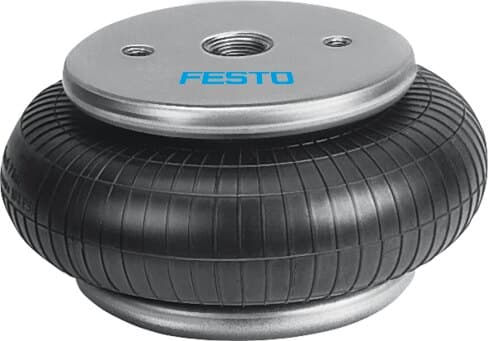

EB-165-65
Product ID:513177
Updated: 2026/5/30
Key Features
- 1Size: 165
- 2Stroke: 65 mm
- 3Pneumatic connection: G1/4
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing material | Steel / galvanized | Bellows material | NR/BR |
| Material note | RoHS compliant | Pneumatic connection | G1/4 |
| Mounting type | Mounting via internal thread | Product weight | 1200 g |
| Reset force | 200 N | Ambient temperature | -40 / 70 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Medium corrosion resistance |
| Operating and pilot medium note | No lubricated medium operation | Operating medium | Compressed air conforming to ISO 8573-1:2010 [-:-:4] |
| Operating pressure | 0 / 116 psi | Symbol | 00991205 |
| Operating mode | Single-acting | Mounting position | Optional |
| Min. Mounting height | 51 mm | Max. offset | 10 mm |
| Max. tilt angle | 20 deg | Max. extended height | 115 mm |
| Stroke | 65 mm | Required mounting diameter | 180 mm |
| Size | 165 |
Specifications may be subject to change without notice
