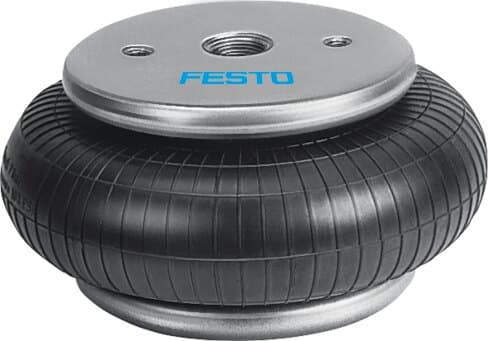

EB-385-115
Product ID:512731
Updated: 2026/5/30
Key Features
- 1Size: 385
- 2Stroke: 115 mm
- 3Pneumatic connection: G1/4
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Housing material | Steel / Galvanised | Bellows material | NR/BR |
| Material note | RoHS compliant | Pneumatic connection | G1/4 |
| Mounting type | Mounting via internal thread | Product weight | 5900 g |
| Reset force | 300 N | Ambient temperature | -40 / 70 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B1/B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Cannot be operated with lubricated medium | Operating medium | Compressed air in accordance with ISO 8573-1:2010 [-:-:4] |
| Operating pressure | 0 / 116 psi | Symbol | 00991205 |
| Operating mode | Single-acting | Mounting position | Optional |
| Minimum mounted height | 51 mm | Maximum offset | 10 mm |
| Maximum tilt angle | 15 deg | Maximum extended height | 175 mm |
| Stroke | 115 mm | Required mounting diameter | 400 mm |
| Size | 385 |
Specifications may be subject to change without notice
