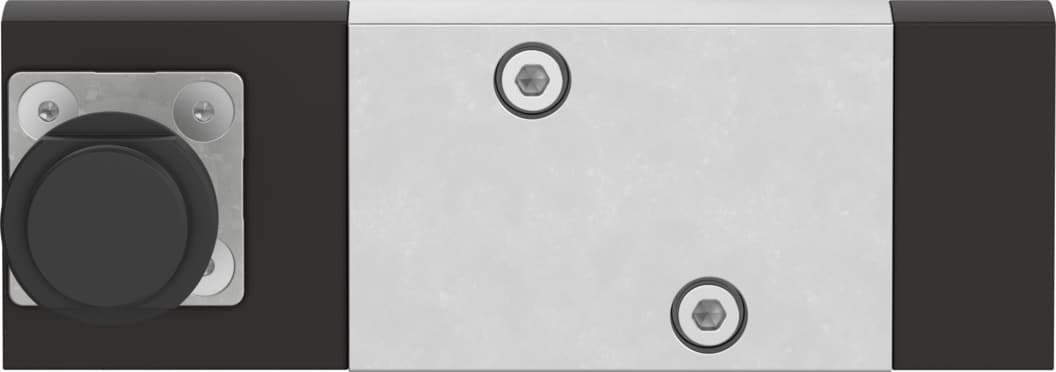

EGZ-16-10
Product ID:510602
Updated: 2026/7/13
Key Features
- 1Operating mode: Push / Single-acting
- 2Piston diameter: 16 mm
- 3Theoretical force at 6 bar, advancing stroke: 109 N
- 4Stroke: 10 mm
- 5Cushioning: None
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston rod material | High-alloy steel | Housing material | Brass / Nickel-plated |
| Seal material | TPE-U(PU) | Cap material | POM |
| Pneumatic connection | M5 | Mounting type | Via external thread / Via lock nut |
| Theoretical force at 6 bar, advancing stroke | 109 N | Theoretical force at 6 bar | 109 N |
| Tightening torque for drive mounting components | 50 Nm | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Note on operating and pilot medium | Ester-based lubricants < 0.1mg/m³, conforming to ISO 8573-1:2010 [-:-:2] | Operating medium | Compressed air, conforming to ISO 8573-1:2010 [7:-:-] |
| Operating pressure | 2 / 8 bar | Variant | Single-ended piston rod |
| Symbol | 00991200 | Position detection | None |
| Design feature | Cylinder bore / Piston rod / Cylinder barrel | Operating mode | Push / Single-acting |
| Mounting position | Optional | Cushioning | None |
| Piston diameter | 16 mm | Stroke | 10 mm |
Specifications may be subject to change without notice
