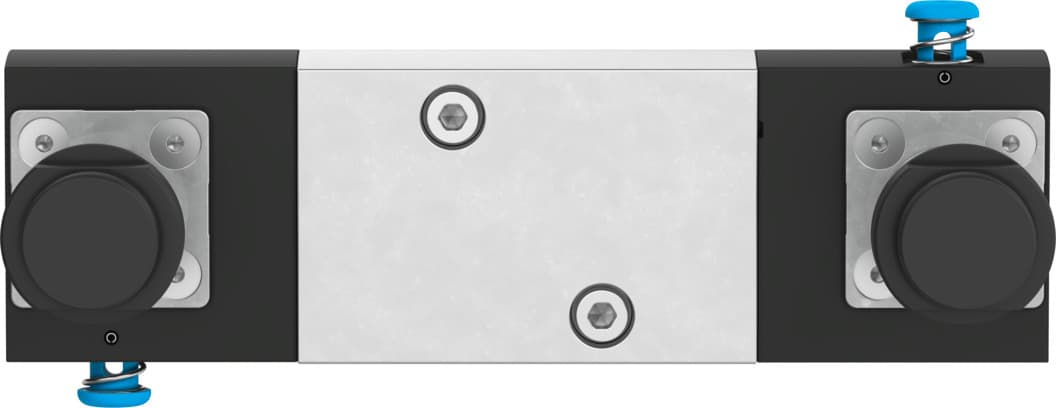

EGZ-6-15
Product ID:510597
Updated: 2026/5/29
Key Features
- 1Operating mode: Push / Single acting
- 2Piston diameter: 6 mm
- 3Theoretical force at 6 bar, forward stroke: 13.9 N
- 4Stroke: 15 mm
- 5Cushioning: None
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Piston rod material | High-alloy steel | Housing material | Brass / Nickel-plated |
| Seal material | TPE-U(PU) | Cover material | POM |
| Pneumatic connection | M3 | Mounting type | Via external thread / Via lock nut |
| Theoretical force at 6 bar, forward stroke | 13.9 N | Theoretical force at 6 bar | 14 N |
| Tightening torque for drive mounting components | 8 Nm | Ambient temperature | -20 / 80 °C |
| Paint-wetting impairment substance (PWIS) conformity | VDMA24364-B2-L | Corrosion resistance class CRC | 2 - Moderate corrosion resistance |
| Operating and pilot medium notes | Ester-based lubricants < 0.1mg/m³, to ISO 8573-1:2010 [-:-:2] | Operating medium | Compressed air, to ISO 8573-1:2010 [7:-:-] |
| Operating pressure | 2 / 8 bar | Variant | Single-ended piston rod |
| Symbol | 00991200 | Position detection | None |
| Design feature | Cylinder diameter / Piston rod / Cylinder barrel | Operating mode | Push / Single acting |
| Mounting position | Optional | Cushioning | None |
| Piston diameter | 6 mm | Stroke | 15 mm |
Specifications may be subject to change without notice
