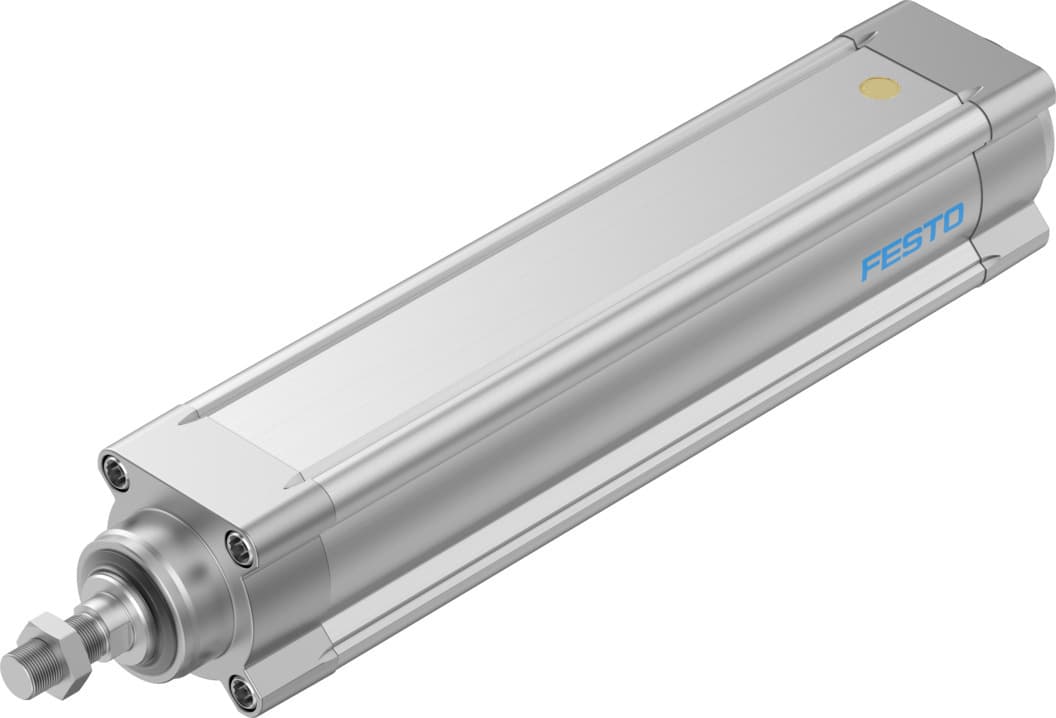

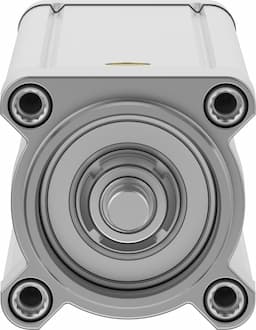

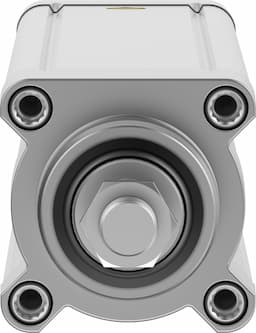

esbf-bs-63-200-5p
Product ID:1329
Updated: 2026/4/3
Key Features
- 1Achieve precise motion control with a 63mm drive unit and 200mm stroke. 2、Ensure reliable operation in demanding environments with a plain-bearing guide. 3、Integrate easily using compatible proximity switches and servo motors. 4、Meet moderate corrosion resistance needs for applications like food processing. 5、Maximize performance with a max. acceleration of 5 m/s² and speed of 0.27 m/s.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 63 | Stroke | 200mm |
| Piston rod thread | M16x1.5 | Reversing backlash | 30μm |
| Screw diameter | 25mm | Spindle pitch | 5mm/U |
| Max. angle of rotation of the piston rod +/- | 0.4deg | Based on norm | ISO 15552 |
| Mounting position | Any | Piston rod end | External thread |
| Motor type | Servo motor | Position sensing | For proximity sensor |
| Structural design | Electric actuator with ball screw | Spindle type | Ball screw |
| Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
| Max. acceleration | 5m/s2 | Max. speed | 0.27m/s |
| Repetition accuracy | ±0.015 mm | Duty cycle | 100% |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
| Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
| Ambient temperature | 0°C 60°C | Max. driving torque | 7Nm |
| Max. radial force on actuator shaft | 700N | Max. feed force Fx | 7000N |
| No-load driving torque | 0.4Nm | Guide value for payload, horizontal | 700kg |
| Guide value for payload, vertical | 700kg | Mass moment of inertia JH per meter of stroke | 2.8316kgcm2 |
| Mass moment of inertia JL per kg of payload | 0.00633kgcm2 | Mass moment of inertia JO | 0.49112kgcm2 |
| Moving mass at 0?mm stroke | 1829g | Additional moving mass per 10?mm stroke | 52g |
| Basic weight with 0?mm stroke | 3163g | Additional weight per 10?mm stroke | 87g |
| Type of mounting | With internal thread or accessory | Interface code, actuator | D60 |
| Note on materials | RoHS-compliant | Cover material | Die-cast aluminum, coated |
| Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
| Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 1347390 |
Specifications may be subject to change without notice
