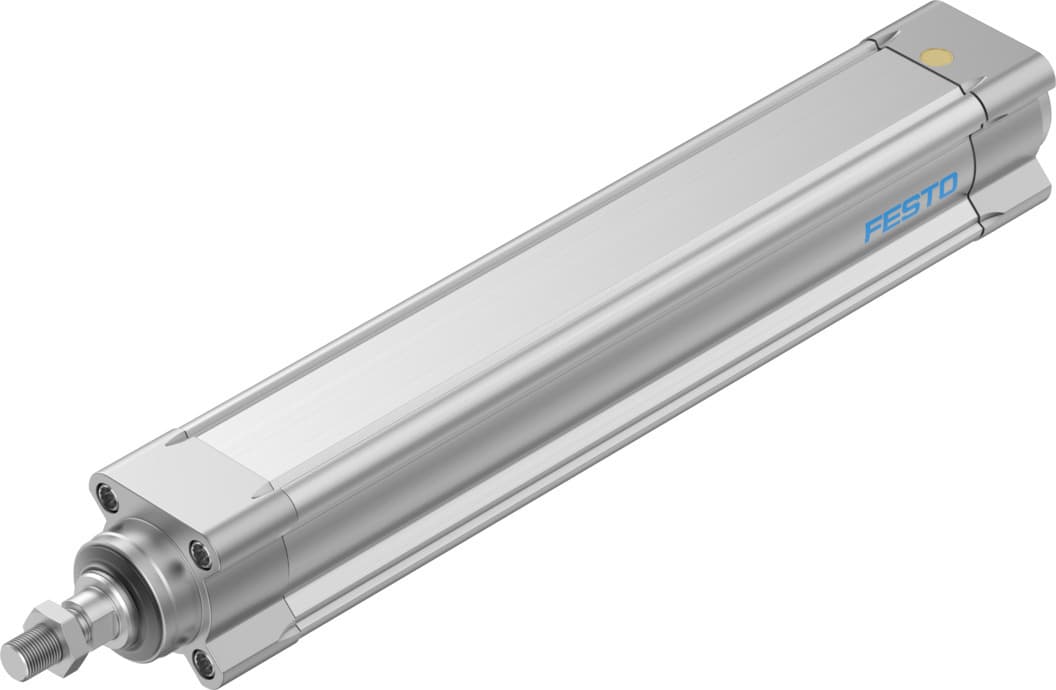

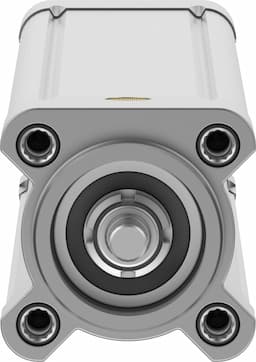

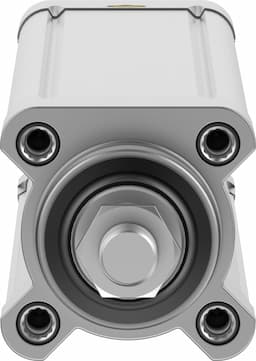

esbf-ls-40-200-3p
Product ID:7968
Updated: 2026/4/3
Key Features
- 1Achieve precise motion control with a 200mm stroke and high repeatability. 2、Ensure durability with a high-alloy stainless steel piston rod. 3、Simplify installation via versatile female thread or accessory mounting. 4、Handle high-speed applications with 0.15 m/s max speed. 5、Integrate easily with stepper or servo motor compatibility.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Size | 40 | Stroke | 200mm |
| Piston rod thread | M12x1.25 | Reversing backlash | 100μm |
| Screw diameter | 16mm | Spindle pitch | 3mm/U |
| Max. angle of rotation of the piston rod +/- | 0.2deg | Based on norm | ISO 15552 |
| Mounting position | Any | Piston rod end | External thread |
| Motor type | Stepper motor Servo motor | Position sensing | For proximity sensor |
| Structural design | Electric actuator with lead screw spindle | Spindle type | Lead screw |
| Symbol | 00991941 | Protection against torsion/guide | With plain-bearing guide |
| Max. acceleration | 2.5m/s2 | Max. speed | 0.15m/s |
| Repetition accuracy | ±0.05 mm | Duty cycle | 100% |
| Corrosion resistance class (CRC) | 2 - Moderate corrosion stress | LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20°C 60°C | For use in the food industry | See supplementary material information |
| Relative air humidity | 0 - 95 % | Degree of protection | IP40 |
| Ambient temperature | 0°C 50°C | Max. driving torque | 2.4Nm |
| Max. radial force on actuator shaft | 130N | Max. feed force Fx | 1000N |
| No-load driving torque | 0.2Nm | Guide value for payload, horizontal | 100kg |
| Guide value for payload, vertical | 100kg | Mass moment of inertia JH per meter of stroke | 0.5075kgcm2 |
| Mass moment of inertia JL per kg of payload | 0.0023kgcm2 | Mass moment of inertia JO | 0.0449kgcm2 |
| Moving mass at 0?mm stroke | 317g | Additional moving mass per 10?mm stroke | 11g |
| Basic weight with 0?mm stroke | 1079g | Additional weight per 10?mm stroke | 48g |
| Type of mounting | With internal thread or accessory | Interface code, actuator | D40 |
| Note on materials | RoHS-compliant | Cover material | Wrought aluminum alloy, smooth-anodized |
| Piston rod material | High-alloy stainless steel | Material of screws | Steel, galvanized |
| Spindle nut material | Roller bearing steel | Spindle material | Roller bearing steel |
| Material of cylinder barrel | Wrought aluminum alloy, smooth-anodized | Manufacturer ID | 2295382 |
