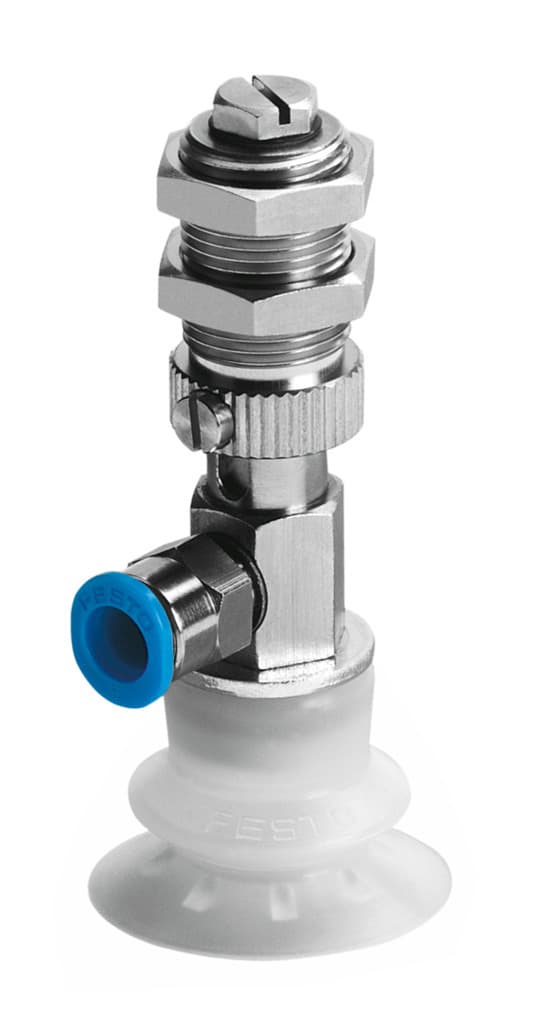

esg-200
Product ID:6511
Updated: 2026/4/3
Key Features
- 1Choose from 15 suction cup diameters, 6 materials, and 6 shapes for optimal handling. 2、Ensure durability with FPM, NBR, PUR, and VMQ (silicone) material options. 3、Adjust mounting easily with top/side vacuum ports and height compensators. 4、Operate reliably in ambient temperatures from -30 °C to 200 °C. 5、Integrate seamlessly with G1/4 vacuum connections for quick installation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup diameter | 200mm | Mounting position | Vertical |
| Structural design | Vacuum connection at top Vacuum connection at side with height compensation with long height compensation | Classification of suction cup holder | Size 6 |
| Suction cup shape | Round, flat | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | Ambient temperature | -30°C 200°C |
| Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
| Suction cup material | FPM NBR PUR VMQ (silicone) | Manufacturer ID | 189181 |
Specifications may be subject to change without notice
