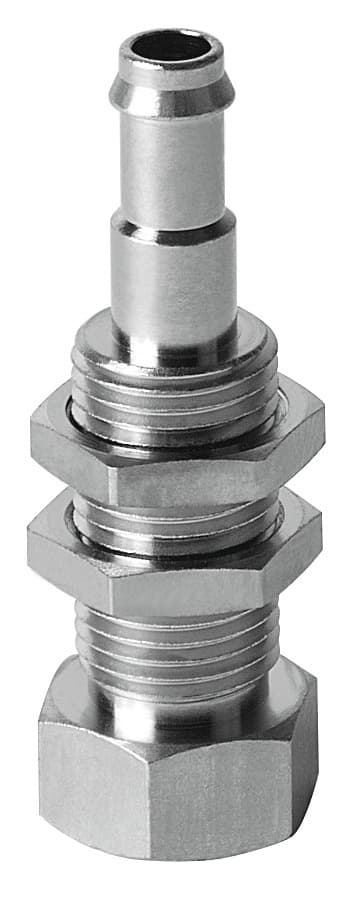

esh-ha-3-pk
Product ID:6528
Updated: 2026/7/4
Key Features
- 1Weigh only 10 g for precision handling applications.
- 2Mount securely via lock nut with M4 suction cup mounting.
- 3Conform to RoHS standards with low corrosion stress.
- 4Operate reliably in temperatures from -10 °C to 60 °C.
- 5Feature durable NBR seals and robust metal components.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2.5mm | Volume | 0.274cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 10g |
| Type of mounting | With lock nut | Suction cup mounting | M4 |
| Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189198 |
Specifications may be subject to change without notice
