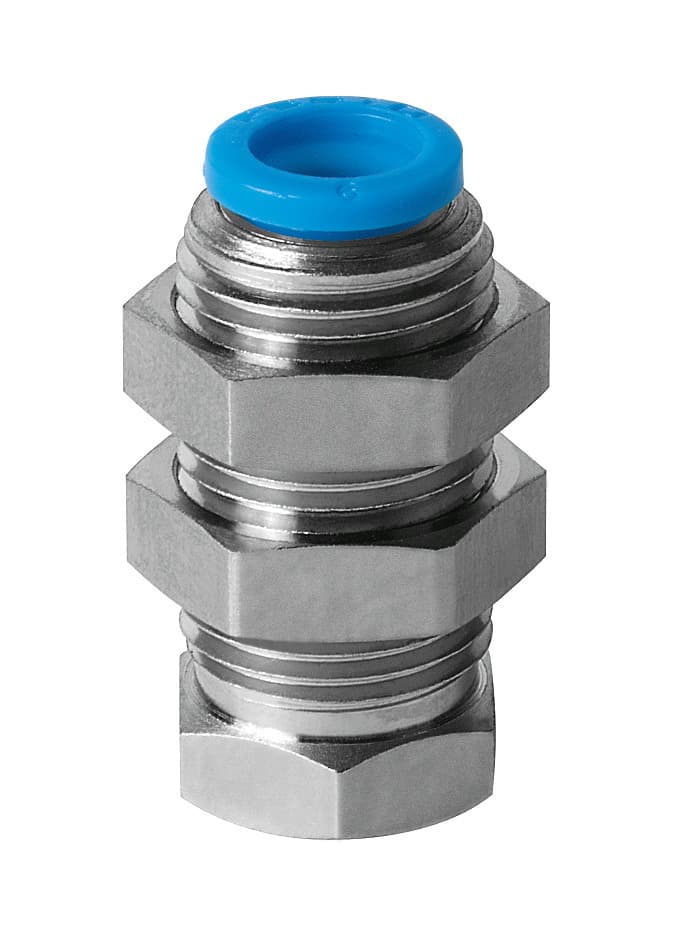

esh-ha-3-qs
Product ID:6527
Updated: 2026/4/3
Key Features
- 1Integrate seamlessly with top vacuum connection. 2、Construct with durable POM high-alloyed and tempered steel. 3、Ensure long life with KBK 1 corrosion resistance. 4、Secure mounting using M4 nut and locking mechanism. 5、Meet safety standards via RoHS compliance and NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 5mm | Volume | 0.52cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 20g |
| Type of mounting | With lock nut | Suction cup mounting | M4 |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189197 |
Specifications may be subject to change without notice
