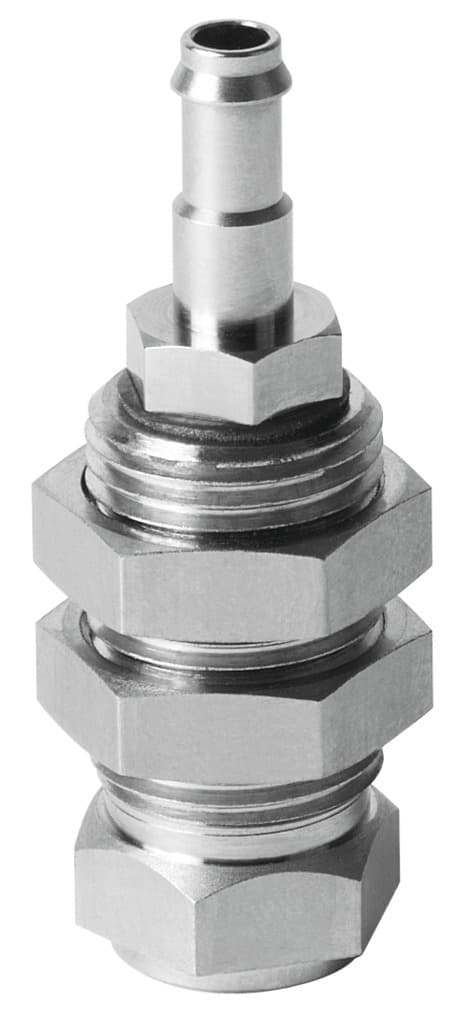

esh-ha-4-pk
Product ID:6530
Updated: 2026/7/4
Key Features
- 1Maximize vacuum efficiency with a 0.668 cm³ volume.
- 2Ensure secure installation using versatile lock nut mounting options.
- 3Prevent corrosion with NBR seals and nickel-plated brass materials.
- 4Guarantee reliable operation with ISO 8573-1:2010 air compatibility.
- 5Achieve compact integration via a 2.5 mm nominal size design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2.5mm | Volume | 0.668cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 23g |
| Type of mounting | With lock nut | Suction cup mounting | M6 |
| Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189200 |
Specifications may be subject to change without notice
