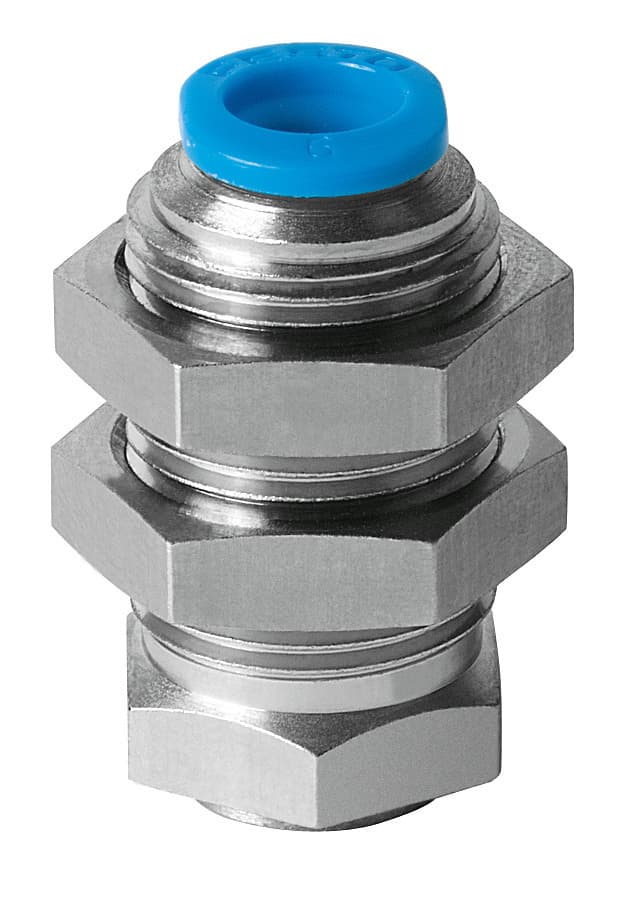

esh-ha-4-qs
Product ID:6529
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact 0.719CCM volume. 2、Ensure durability with Class KBK 1 environmental rating. 3、Simplify setup via vertical mounting and top vacuum connection. 4、Meet compliance using RoHS-approved NBR seals and steel. 5、Secure fixation with a locking nut and M6 suction cup mount.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 5mm | Volume | 0.719cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 30g |
| Type of mounting | With lock nut | Suction cup mounting | M6 |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189199 |
Specifications may be subject to change without notice
