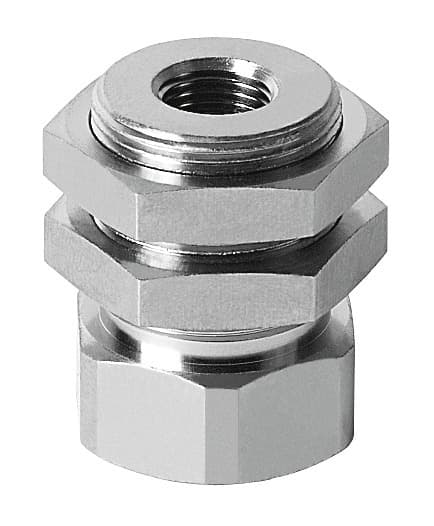

esh-ha-5-g
Product ID:6531
Updated: 2026/7/4
Key Features
- 1Optimize space with a compact 8 mm width and 1.862 cm³ volume.
- 2Secure mounting in any direction using the integrated lock nut.
- 3Ensure durability with corrosion-resistant aluminum, brass, and steel.
- 4Simplify assembly via the top-positioned vacuum connection.
- 5Operate reliably in a wide -10 °C to 60 °C temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 8mm | Volume | 1.862cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 5 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 84g |
| Type of mounting | With lock nut | Suction cup mounting | M10 |
| Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189201 |
Specifications may be subject to change without notice
