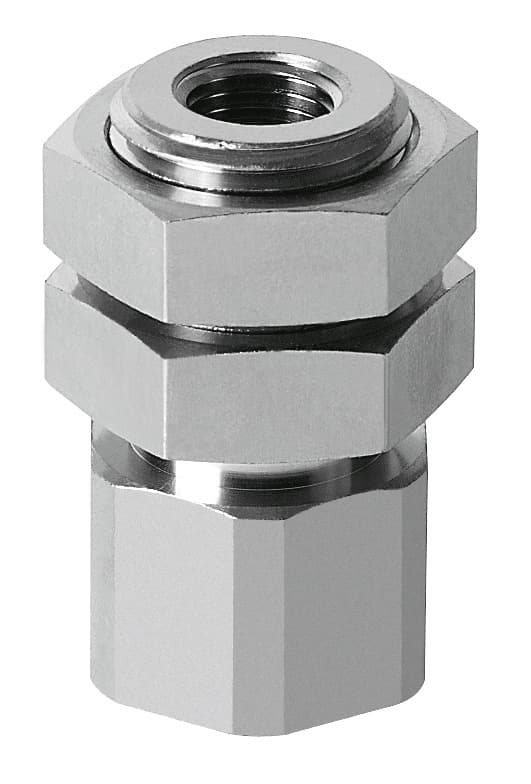

esh-ha-6-g
Product ID:6532
Updated: 2026/7/8
Key Features
- 1Deliver 7.234 cm³ volume for efficient vacuum handling.
- 2Enable vertical mounting via M20x2 lock nut.
- 3Feature CRC 1 corrosion resistance and LABS conformity.
- 4Suit atmospheric air per ISO 8573-1:2010 standards.
- 5Construct with RoHS materials like aluminum and POM.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 10mm | Volume | 7.234cm3 |
| Mounting position | Any | Structural design | Vacuum connection at top |
| Classification of suction cup holder | Size 6 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 200g |
| Type of mounting | With lock nut | Suction cup mounting | M20x2 |
| Vacuum connection | G1/4 | Note on materials | RoHS-compliant |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189202 |
Specifications may be subject to change without notice
