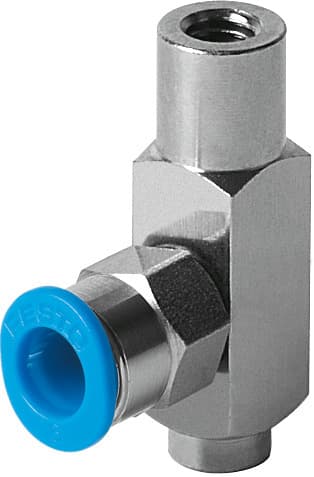

esh-hb-1-qs
Product ID:6533
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact 0.228 cm³ volume. 2、Mount vertically for flexible application in tight spaces. 3、Connect easily via the side vacuum port. 4、Ensure durability with low corrosion resistance CRC 1. 5、Integrate seamlessly with Festo ESH series systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3mm | Volume | 0.228cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 1 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 5g |
| Type of mounting | With internal thread | Suction cup mounting | Diameter 3 mm |
| Vacuum connection | QS-4 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189203 |
Specifications may be subject to change without notice
