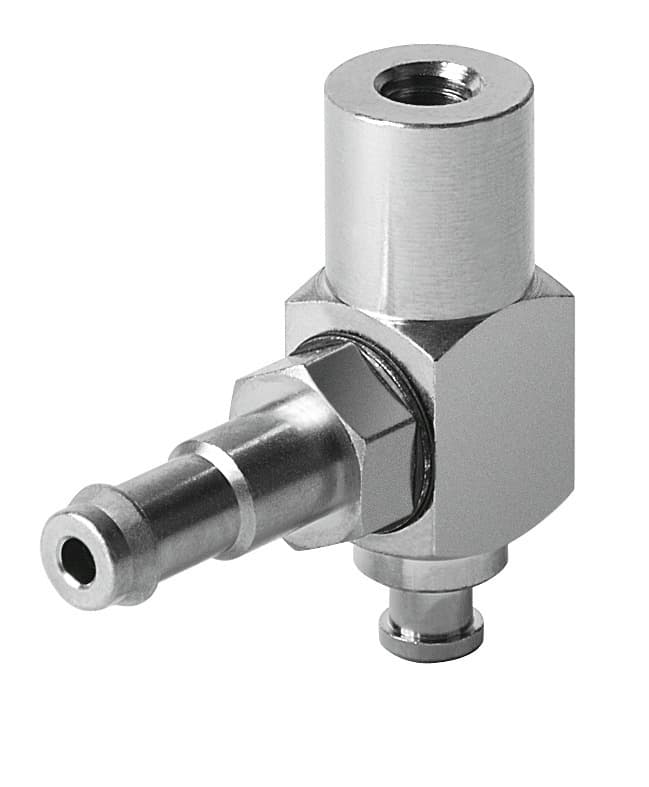

esh-hb-2-pk
Product ID:6536
Updated: 2026/4/3
Key Features
- 1Weigh only 11 grams for easy handling. 2、Mount vertically for flexible installation. 3、Ensure RoHS compliance with NBR seals. 4、Connect via PK-4 for reliable suction. 5、Operate from -10°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2mm | Volume | 0.188cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 2 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 11g |
| Type of mounting | With internal thread | Suction cup mounting | Diameter 4 mm |
| Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189206 |
Specifications may be subject to change without notice
