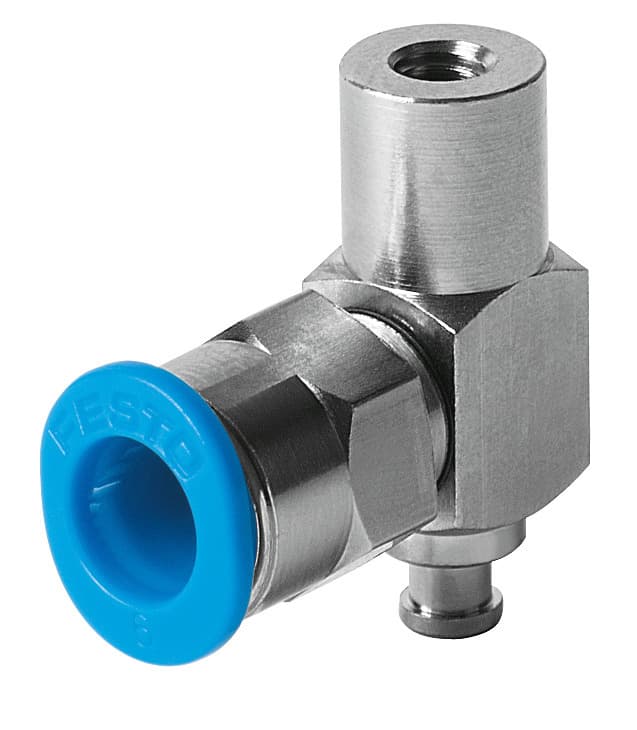

esh-hb-2-qs
Product ID:6535
Updated: 2026/4/3
Key Features
- 1Secure vertical mounting with side vacuum connection for stable operation. 2、Save space using the compact 0.418 cm³ volume design. 3、Ensure compatibility with atmospheric air per ISO 8573-1:2010. 4、Withstand industrial conditions with low corrosion resistance (CRC 1). 5、Achieve precise handling via the 4 mm suction fastening.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2mm | Volume | 0.418cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 2 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 13g |
| Type of mounting | With internal thread | Suction cup mounting | Diameter 4 mm |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189205 |
Specifications may be subject to change without notice
