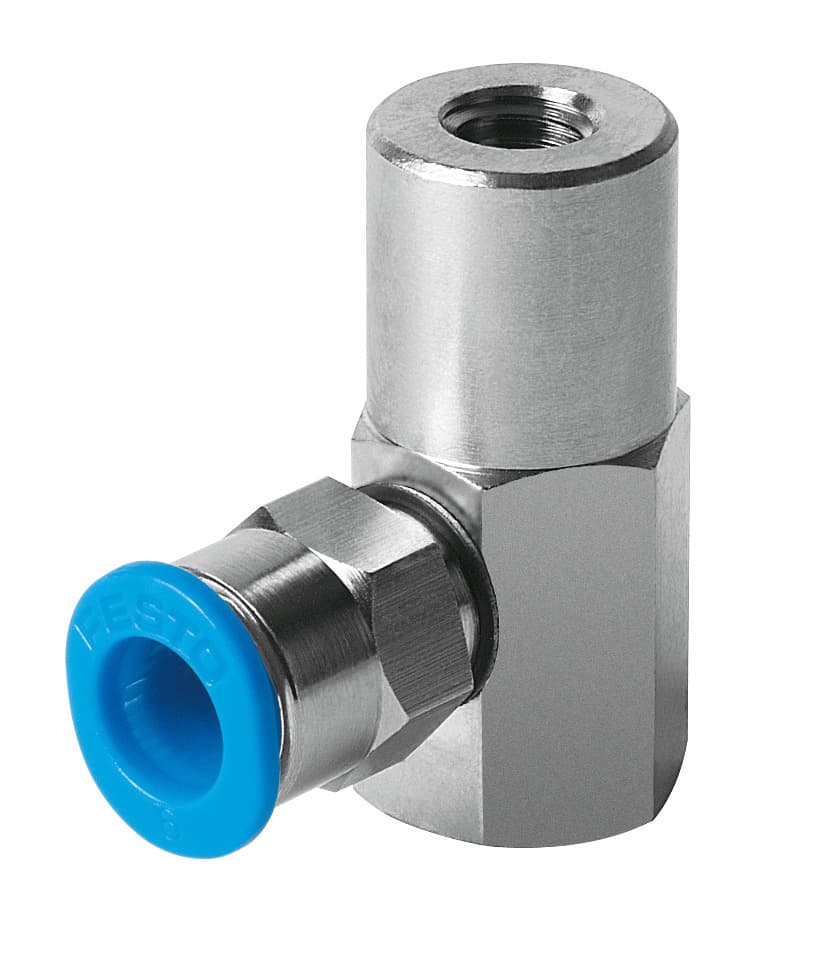

esh-hb-3-qs
Product ID:6537
Updated: 2026/4/3
Key Features
- 1Optimize space with a compact 3.3 mm nominal width. 2、Install flexibly using the optional mounting positions. 3、Ensure durability with RoHS-compliant NBR seals and aluminum. 4、Achieve reliable suction via the integrated QS-6 vacuum connection. 5、Maintain performance in a 0 °C to 60 °C ambient range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 3.3mm | Volume | 0.519cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 3 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | 0°C 60°C | Product weight | 29g |
| Type of mounting | With internal thread | Suction cup mounting | M4 |
| Vacuum connection | QS-6 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189207 |
Specifications may be subject to change without notice
