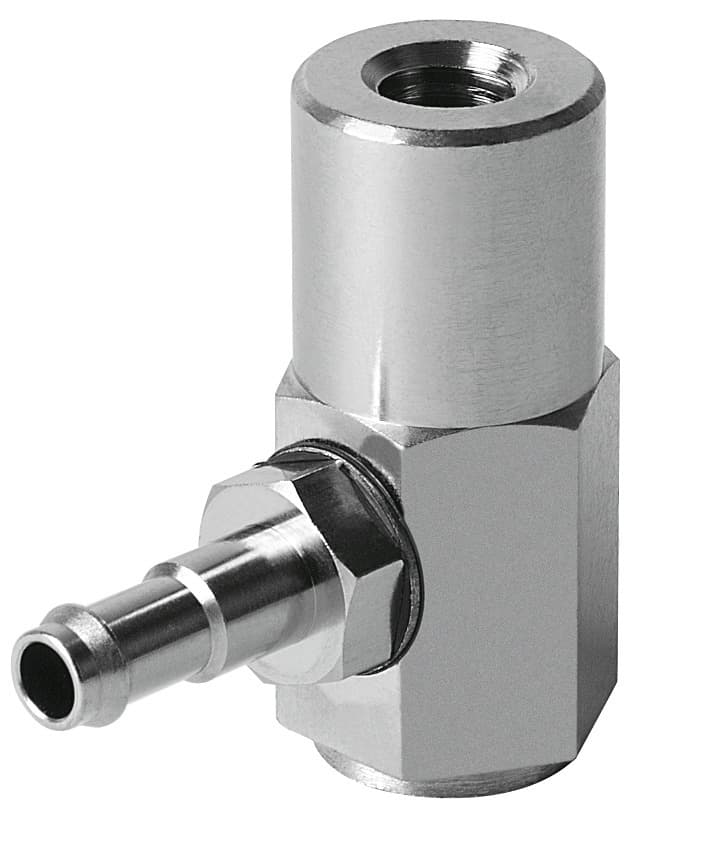

esh-hb-4-pk
Product ID:6540
Updated: 2026/7/4
Key Features
- 1Feature a compact 2.5 mm nominal diameter for versatile applications.
- 2Offer versatile installation with female thread and M6 suction cup.
- 3Ensure durability with low corrosion stress class CRC 1.
- 4Operate effectively from -10°C to 60°C ambient temperature.
- 5Meet RoHS compliance with NBR and steel seals.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 2.5mm | Volume | 0.416cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 4 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 25g |
| Type of mounting | With internal thread | Suction cup mounting | M6 |
| Vacuum connection | PK-4 | Note on materials | RoHS-compliant |
| Seals material | NBR Steel | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189210 |
Specifications may be subject to change without notice
