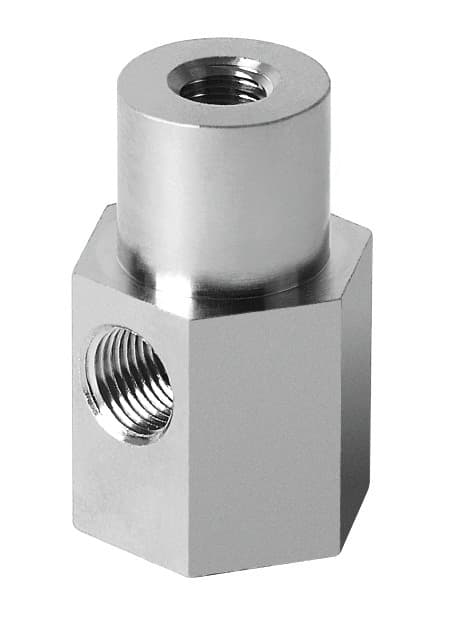

esh-hb-5-g
Product ID:6541
Updated: 2026/7/4
Key Features
- 1Mount versatilely with internal thread and M10 suction cup options.
- 2Construct robustly from RoHS POM, brass, and high-alloy steel.
- 3Operate widely from -10°C to 60°C for diverse environments.
- 4Connect efficiently via G1/8 port for seamless vacuum integration.
- 5Install compactly with a lightweight 91g design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Nominal width | 8.5mm | Volume | 1.921cm3 |
| Mounting position | Any | Structural design | Vacuum connection at side |
| Classification of suction cup holder | Size 5 | Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class (CRC) | 1 - Low corrosion stress | LABS (PWIS) conformity | VDMA24364-A1-L |
| Ambient temperature | -10°C 60°C | Product weight | 91g |
| Type of mounting | With internal thread | Suction cup mounting | M10 |
| Vacuum connection | G1/8 | Note on materials | RoHS-compliant |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189211 |
Specifications may be subject to change without notice
