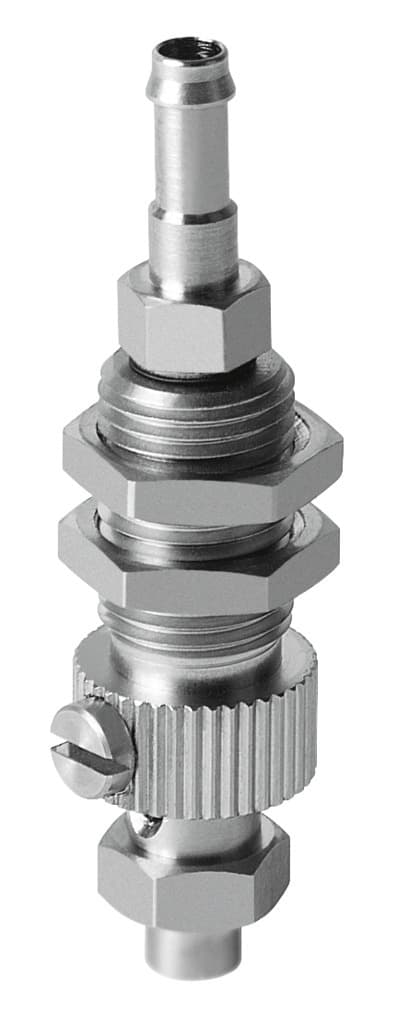

esh-hc-1-pk
Product ID:6544
Updated: 2026/7/4
Key Features
- 1Ensure precise suction cup alignment with a 3mm height compensator.
- 2Optimize space using a compact 0.117 cm³ volume design.
- 3Simplify installation via the vertical mounting position.
- 4Connect vacuum from the top with integrated height compensation.
- 5Meet environmental standards with RoHS-compliant materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 1.2mm |
| Volume | 0.117cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 1 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 8g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 3 mm | Vacuum connection | PK-3 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189214 |
Specifications may be subject to change without notice
