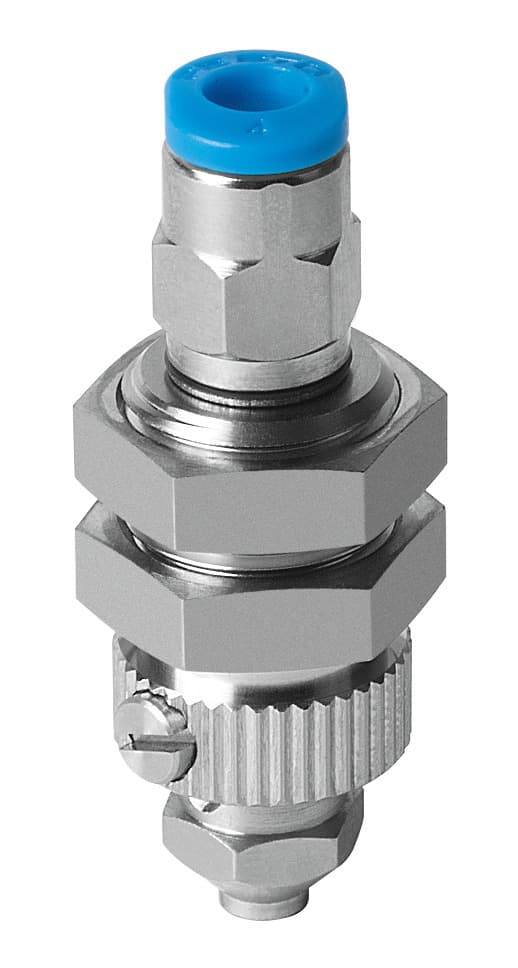

esh-hc-1-qs
Product ID:6543
Updated: 2026/7/4
Key Features
- 1Align suction cups precisely with a 3mm height compensator.
- 2Generate vacuum efficiently using a 0.385cm³ volume.
- 3Install easily in a vertical mounting position.
- 4Connect vacuum lines conveniently via the top port.
- 5Ensure environmental compliance with RoHS materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 2.4mm |
| Volume | 0.385cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 1 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 17g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 3 mm | Vacuum connection | QS-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189213 |
Specifications may be subject to change without notice
