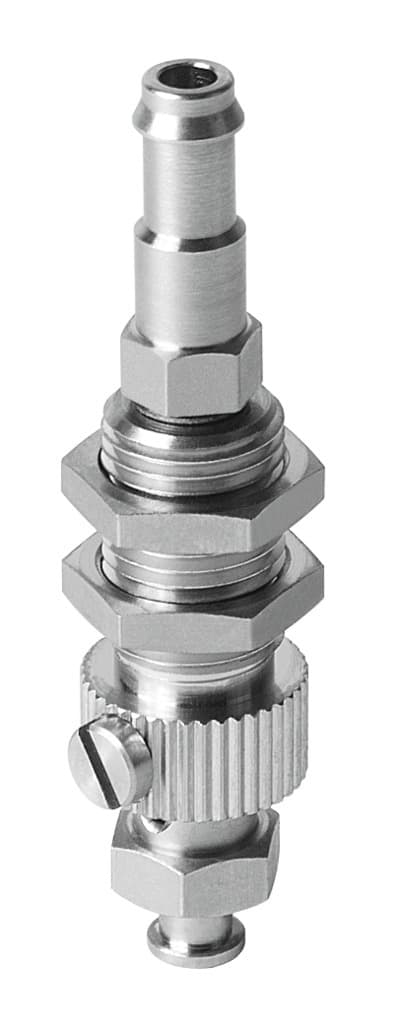

esh-hc-2-pk
Product ID:6546
Updated: 2026/4/3
Key Features
- 1Integrate a 3mm height compensator for precise suction cup alignment. 2、Mount vertically to ensure stable and secure vacuum connections. 3、Utilize a compact 0.192 cm³ volume for space-efficient designs. 4、Construct with aluminum and steel for enhanced durability and longevity. 5、Comply with ISO 8573-1:2010 standards for reliable operation.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 1.2mm |
| Volume | 0.192cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 8g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189216 |
Specifications may be subject to change without notice
