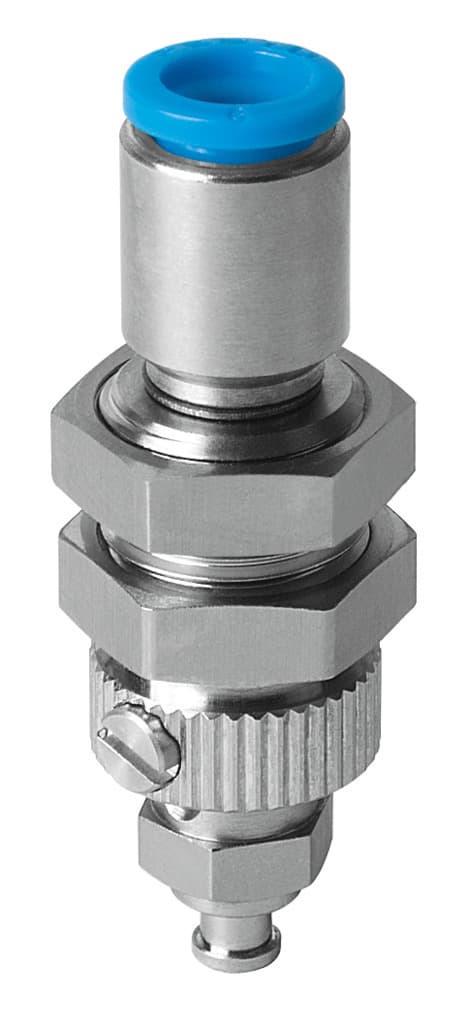

esh-hc-2-qs
Product ID:6545
Updated: 2026/7/4
Key Features
- 1Compensate height by 3 mm for precise suction cup positioning.
- 2Mount vertically with its compact, 18-gram lightweight design.
- 3Ensure durability with RoHS-compliant NBR seals and high-alloy steel.
- 4Integrate easily using the secure lock nut and QS-6 vacuum connection.
- 5Operate reliably in a wide 0°C to 60°C ambient temperature range.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 2.2mm |
| Volume | 0.551cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 18g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189215 |
Specifications may be subject to change without notice
