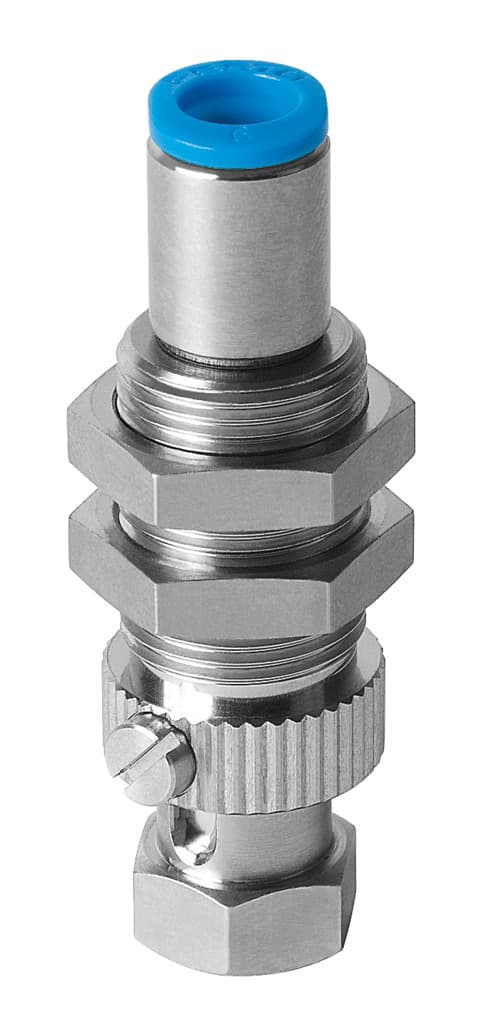

esh-hc-3-qs
Product ID:6547
Updated: 2026/4/3
Key Features
- 1Achieve precise positioning with a 6mm height compensator. 2、Save space using a compact 3.4mm width design. 3、Ensure stable operation with vertical mounting capability. 4、Rely on robust RoHS-compliant, low-corrosion construction. 5、Integrate seamlessly via the versatile QS-6 vacuum connection.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Nominal width | 3.4mm |
| Volume | 1.041cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 3 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 34g | Type of mounting | With lock nut |
| Suction cup mounting | M4 | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189217 |
Specifications may be subject to change without notice
