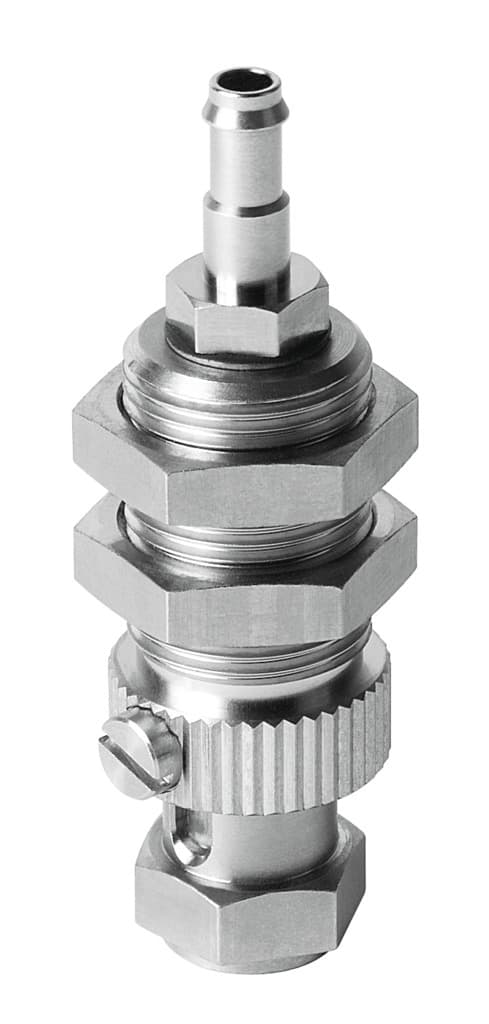

esh-hc-4-pk
Product ID:6550
Updated: 2026/7/4
Key Features
- 1Ensure stable suction with a compact 6 mm height compensator.
- 2Utilize corrosion-resistant CRC 1 materials for durability.
- 3Secure attachment via vertical mounting position.
- 4Connect to M6 suction cups and PK-4 vacuum connections.
- 5Meet RoHS and ISO 8573-1:2010 standards for air.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Nominal width | 2.5mm |
| Volume | 0.911cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 31g | Type of mounting | With lock nut |
| Suction cup mounting | M6 | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189220 |
Specifications may be subject to change without notice
