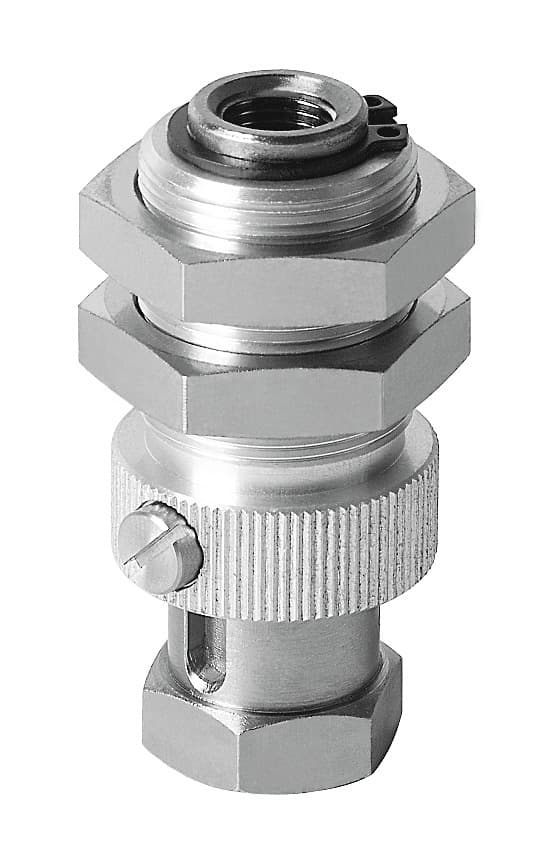

esh-hc-5-g
Product ID:6551
Updated: 2026/7/4
Key Features
- 1Ensure stable performance with a 10mm height compensator.
- 2Simplify installation via vertical mounting design.
- 3Meet environmental standards using RoHS-compliant materials.
- 4Access the vacuum connection easily with a top port.
- 5Reduce corrosion stress with CRC 1 rating for durability.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Nominal width | 8.4mm |
| Volume | 3.327cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 5 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 112g | Type of mounting | With lock nut |
| Suction cup mounting | M10 | Vacuum connection | G1/8 |
| Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189221 |
Specifications may be subject to change without notice
