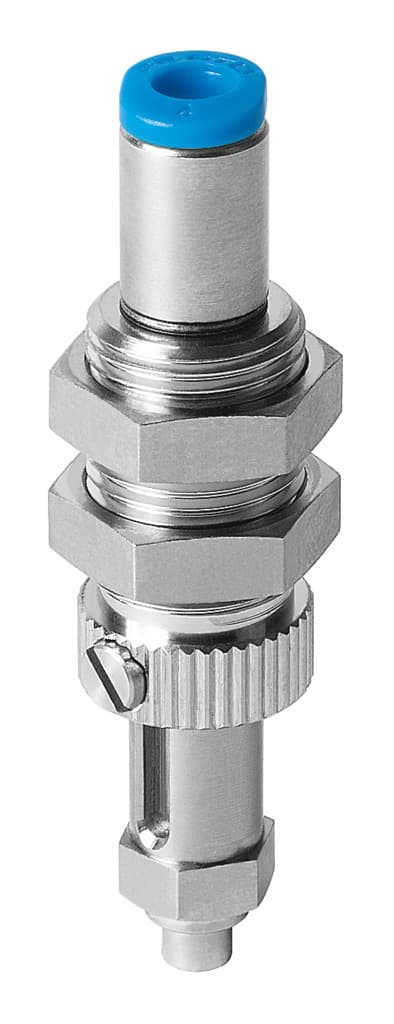

esh-hcl-1-qs
Product ID:6553
Updated: 2026/7/4
Key Features
- 1Align suction cups precisely with a 10mm height compensator.
- 2Save space in your system with a compact 0.489 cm³ volume.
- 3Mount vertically for enhanced stability and reliable operation.
- 4Resist corrosion in atmospheric air per ISO 8573-1:2010, class CRC 1.
- 5Ensure durability with robust NBR seals and nickel-plated brass construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Nominal width | 2.8mm |
| Volume | 0.489cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 1 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 20g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 3 mm | Vacuum connection | QS-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189223 |
Specifications may be subject to change without notice
