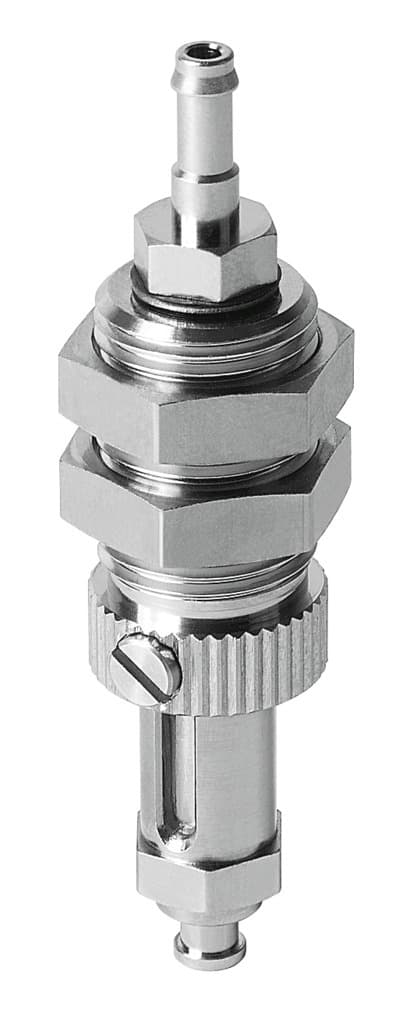

esh-hcl-2-pk
Product ID:6556
Updated: 2026/7/4
Key Features
- 1Compensate height precisely with a 10mm adjustment mechanism.
- 2Ensure reliable operation via a top-mounted vacuum connection.
- 3Save space with a compact 2.2 mm nominal size design.
- 4Resist corrosion effectively with CRC 1 rating and ISO standards.
- 5Mount vertically easily using the integrated lock nut.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Nominal width | 2.2mm |
| Volume | 0.398cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 19g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189226 |
Specifications may be subject to change without notice
