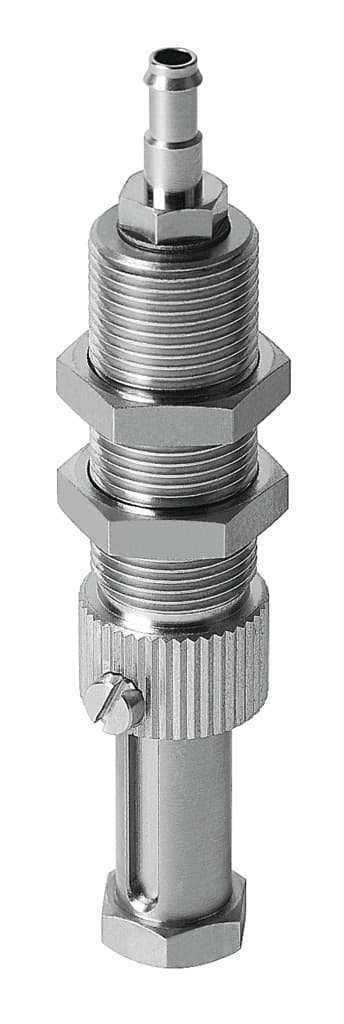

esh-hcl-4-pk
Product ID:6560
Updated: 2026/4/3
Key Features
- 1Ensure stable suction cup positioning with a 20 mm height compensator. 2、Achieve reliable operation via the top vacuum port with height compensator. 3、Save space with a nominal size of 3 mm and volume of 1.535 cm³. 4、Simplify installation using the vertical mounting position and secure lock nut. 5、Enhance durability with low corrosion stress (CRC 1) and RoHS-compliant materials.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 20mm | Nominal width | 3mm |
| Volume | 1.535cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 45g | Type of mounting | With lock nut |
| Suction cup mounting | M6 | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189230 |
Specifications may be subject to change without notice
