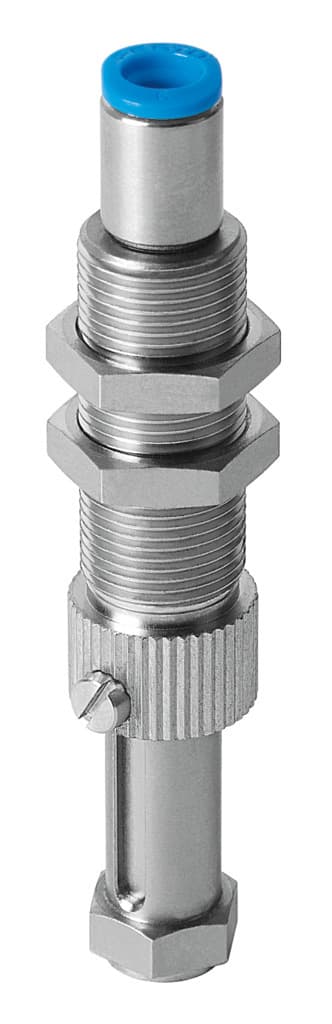

esh-hcl-4-qs
Product ID:6559
Updated: 2026/4/3
Key Features
- 1Ensure precise vacuum handling with a 20mm height compensator. 2、Mount vertically with a top vacuum port for secure suction. 3、Meet low corrosion stress standards (CRC 1) for harsh environments. 4、Handle easily with a lightweight design of only 47g. 5、Get peace of mind with RoHS compliance and a 2-year warranty.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 20mm | Nominal width | 3.4mm |
| Volume | 1.78cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 47g | Type of mounting | With lock nut |
| Suction cup mounting | M6 | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189229 |
Specifications may be subject to change without notice
