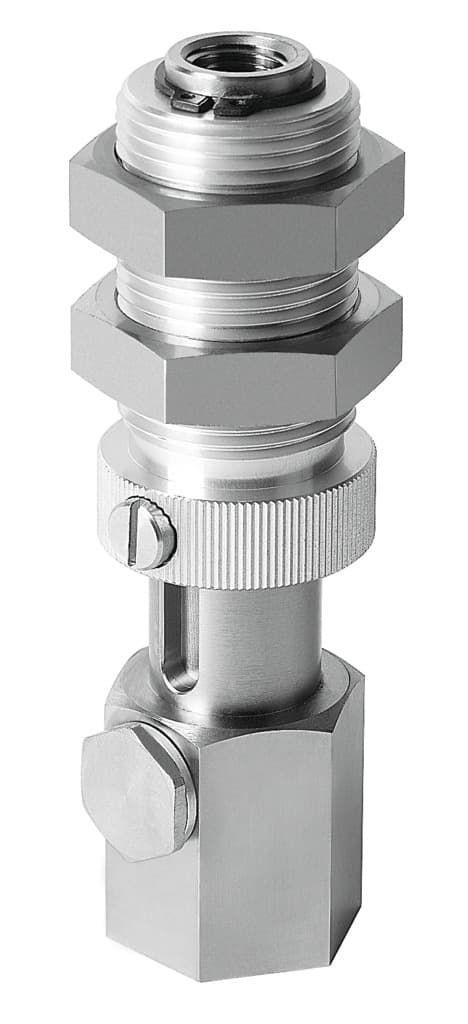

esh-hcl-6-g
Product ID:6562
Updated: 2026/4/3
Key Features
- 1Ensure precise alignment with a 40mm height compensator. 2、Secure vertical mounting using the integrated lock nut. 3、Construct with robust, RoHS-compliant aluminum and steel. 4、Deliver optimal vacuum via the top G1/4 connection. 5、Meet ISO 8573-1:2010 and VDMA24364 standards.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 40mm | Nominal width | 10mm |
| Volume | 16.325cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at top with height compensation | Classification of suction cup holder | Size 6 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 560g | Type of mounting | With lock nut |
| Suction cup mounting | M20x2 | Vacuum connection | G1/4 |
| Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189232 |
Specifications may be subject to change without notice
