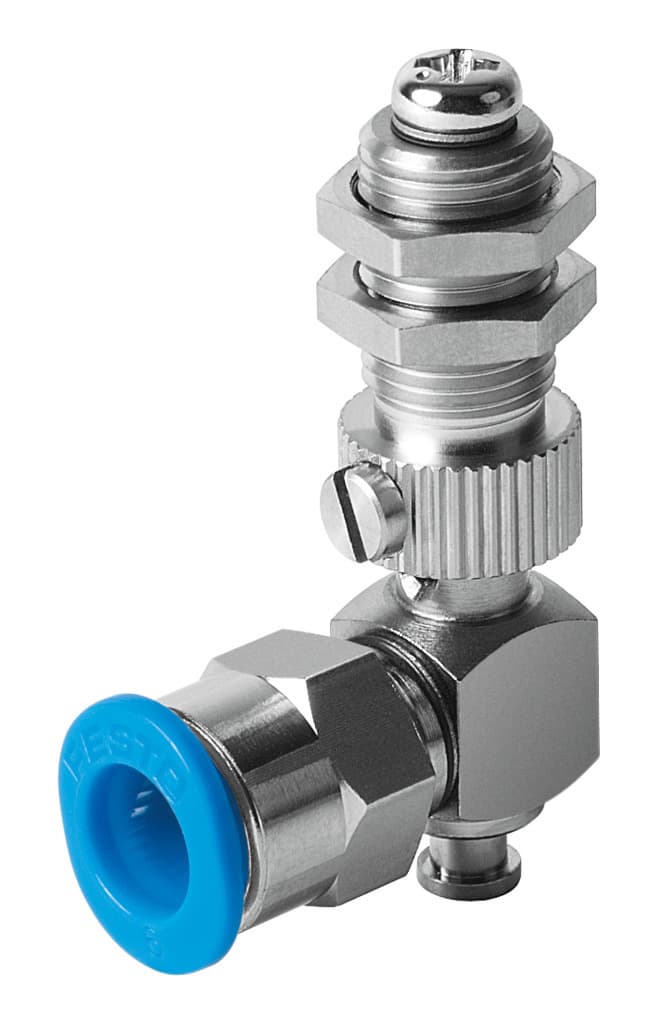

esh-hd-1-qs
Product ID:6563
Updated: 2026/7/8
Key Features
- 1Minimize space usage with a compact 0.241 cm³ volume.
- 2Ensure stable suction using the integrated 3mm height compensator.
- 3Mount vertically for flexible and efficient system integration.
- 4Access the vacuum connection conveniently from the side.
- 5Rely on durable NBR seals, aluminum, and brass construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 3mm |
| Volume | 0.241cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 1 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 13g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 3 mm | Vacuum connection | QS-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189233 |
Specifications may be subject to change without notice
