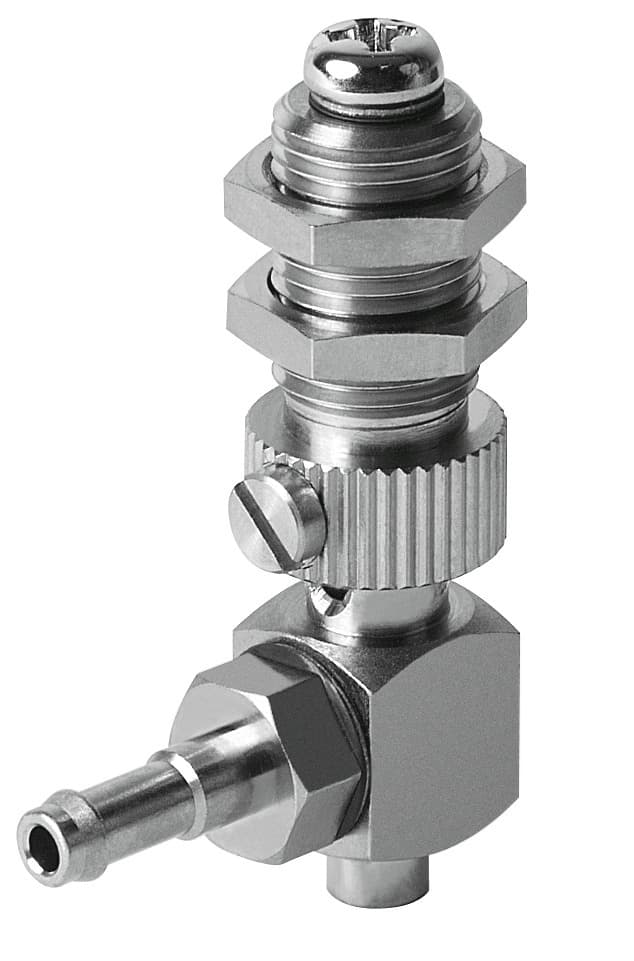

esh-hd-2-pk
Product ID:6566
Updated: 2026/4/3
Key Features
- 1Ensure precise positioning with a 3mm height compensator. 2、Reduce corrosion stress using RoHS-compliant materials. 3、Secure the system with a reliable locking nut. 4、Achieve reliable suction with a 4 mm cup diameter. 5、Adapt to temperatures from -10°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 3mm | Nominal width | 1.8mm |
| Volume | 0.183cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 12g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189236 |
Specifications may be subject to change without notice
