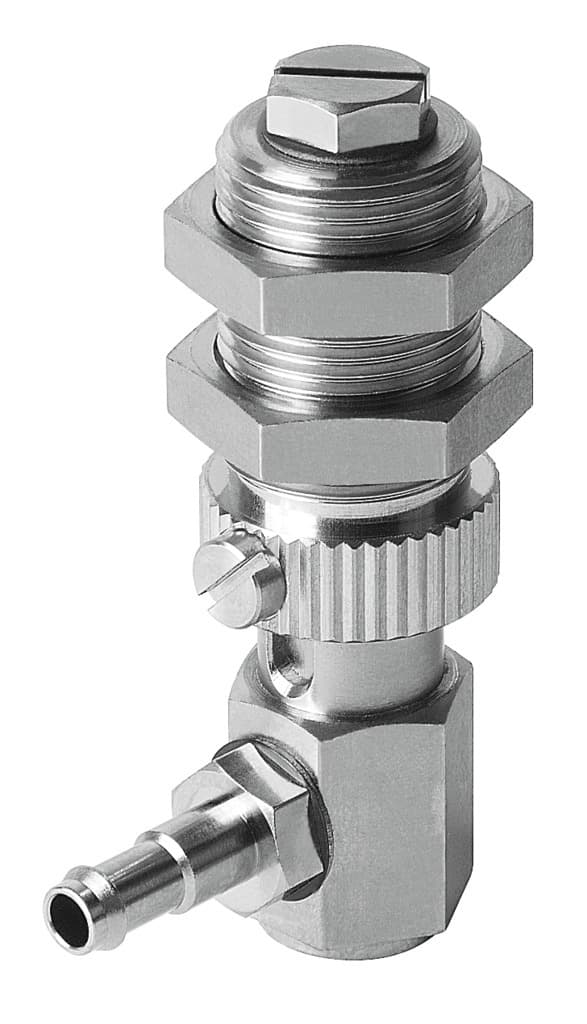

esh-hd-4-pk
Product ID:6570
Updated: 2026/4/3
Key Features
- 1Align precisely with a 6mm height compensator. 2、Reduce corrosion risk with CRC Class 1 materials. 3、Mount vertically for stable system integration. 4、Ensure compliance using RoHS-certified components. 5、Connect easily via PK-4 vacuum and M6 suction cup.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 6mm | Nominal width | 3mm |
| Volume | 0.449cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 4 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 43g | Type of mounting | With lock nut |
| Suction cup mounting | M6 | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189240 |
Specifications may be subject to change without notice
