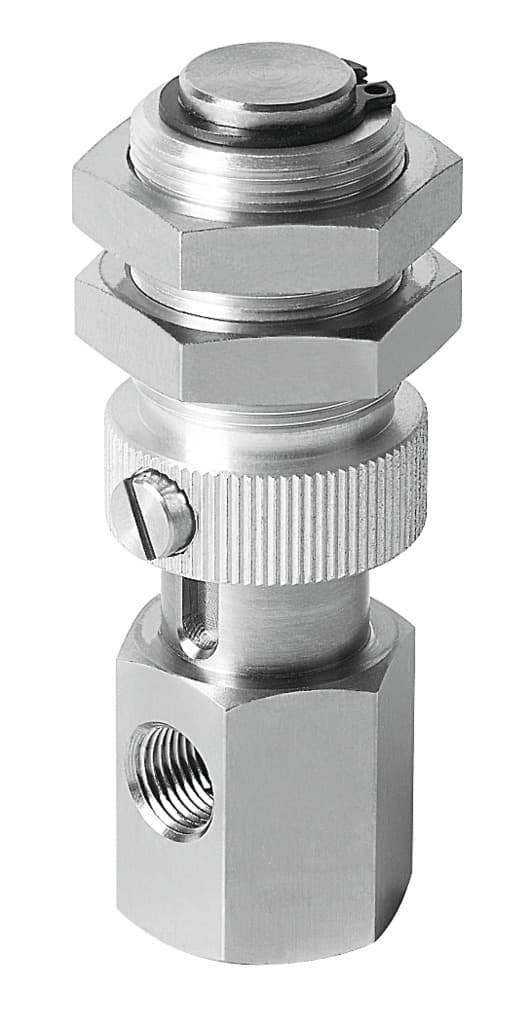

esh-hd-6-g
Product ID:6572
Updated: 2026/7/8
Key Features
- 1Feature a 20 mm height compensator for precise positioning.
- 2Construct with corrosion-resistant CRC 1 materials and side vacuum connection.
- 3Secure using two hexagonal nuts for vertical assembly.
- 4Handle demanding tasks with a 13,171 cm³ volume capacity.
- 5Operate on atmospheric air per ISO 8573-1:2010 and RoHS standards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 20mm | Nominal width | 10mm |
| Volume | 13.171cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 6 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 472g | Type of mounting | With lock nut |
| Suction cup mounting | M20x2 | Vacuum connection | G1/4 |
| Note on materials | RoHS-compliant | Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel |
| Manufacturer ID | 189242 |
Specifications may be subject to change without notice
