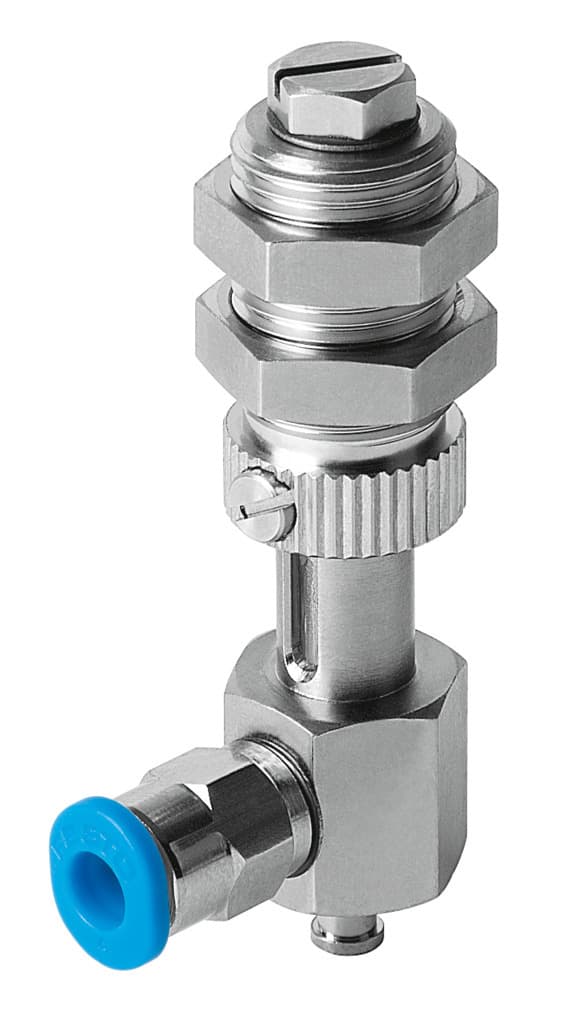

esh-hdl-2-qs
Product ID:6575
Updated: 2026/4/3
Key Features
- 1Ensure stable suction with a 10mm height compensator. 2、Mount vertically for a space-efficient and convenient design. 3、Connect vacuum easily via the side port for reliable performance. 4、Reduce corrosion stress as it meets CRC 1 standards. 5、Use RoHS-compliant materials for environmental safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 10mm | Nominal width | 2.2mm |
| Volume | 0.26cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 2 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | 0°C 60°C |
| Product weight | 33g | Type of mounting | With lock nut |
| Suction cup mounting | Diameter 4 mm | Vacuum connection | QS-6 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189245 |
Specifications may be subject to change without notice
