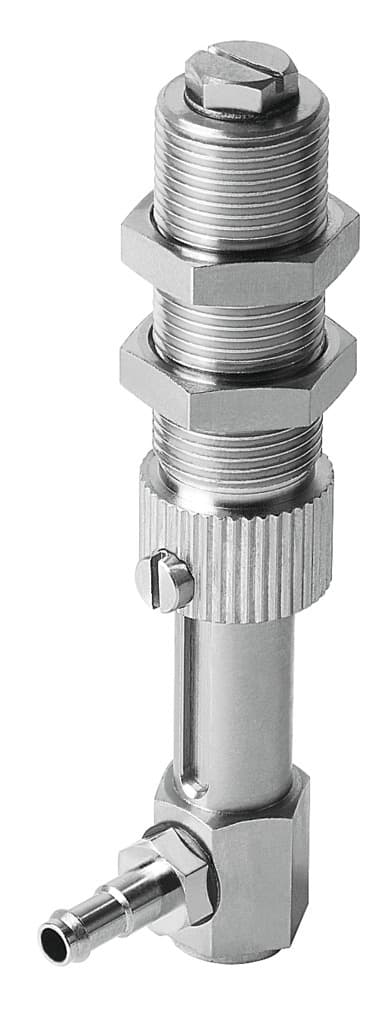

esh-hdl-3-pk
Product ID:6578
Updated: 2026/4/3
Key Features
- 1Align suction cups precisely with a 20mm height compensator. 2、Achieve efficient vacuum sealing with a 0.252 cm³ volume. 3、Secure installation using a vertical mount and lock nut. 4、Enhance stability with a side vacuum port and compensator. 5、Ensure compliance using RoHS materials like NBR seals.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Suction cup holder height compensator | 20mm | Nominal width | 3mm |
| Volume | 0.252cm3 | Mounting position | Vertical |
| Structural design | Vacuum connection at side with height compensation | Classification of suction cup holder | Size 3 |
| Operating medium | Atmospheric air based on ISO 8573-1:2010 [7:-:-] | Corrosion resistance class (CRC) | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-A1-L | Ambient temperature | -10°C 60°C |
| Product weight | 63g | Type of mounting | With lock nut |
| Suction cup mounting | M4 | Vacuum connection | PK-4 |
| Note on materials | RoHS-compliant | Seals material | NBR Steel |
| Retaining bracket material | Aluminum Brass, nickel-plated POM Tempered steel High-alloy steel | Manufacturer ID | 189248 |
Specifications may be subject to change without notice
